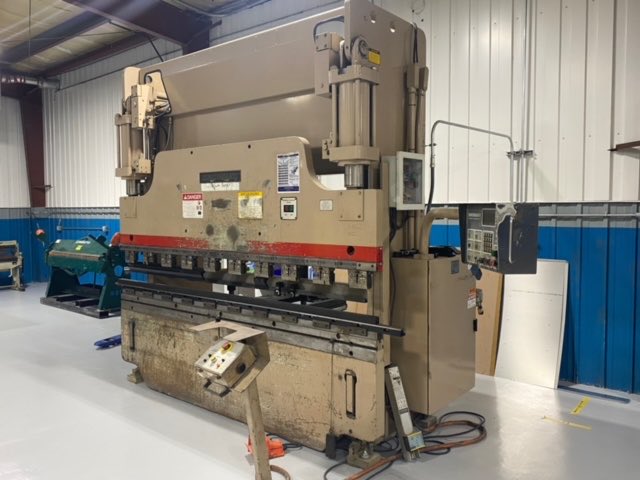

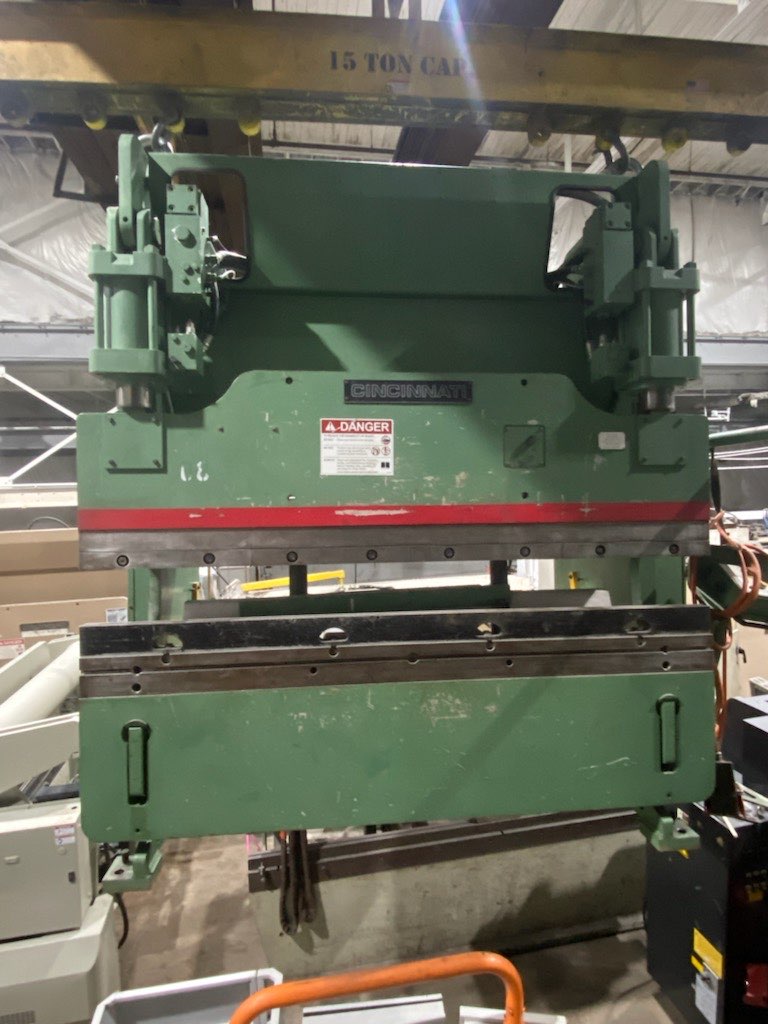

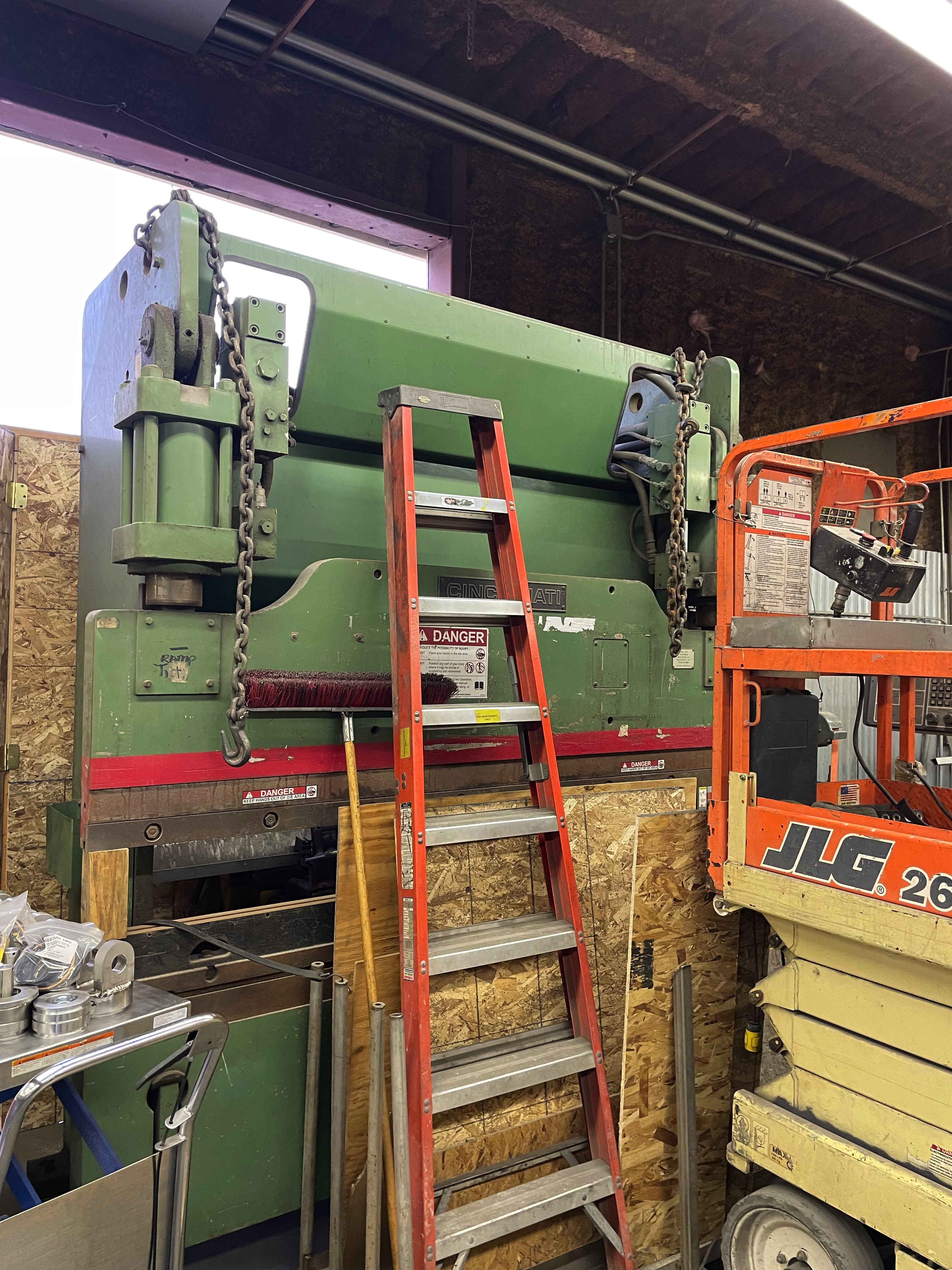

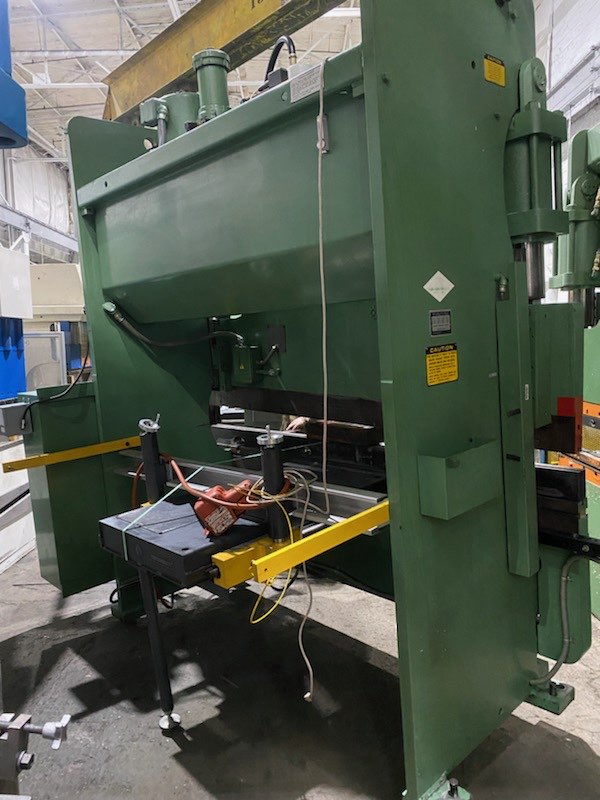

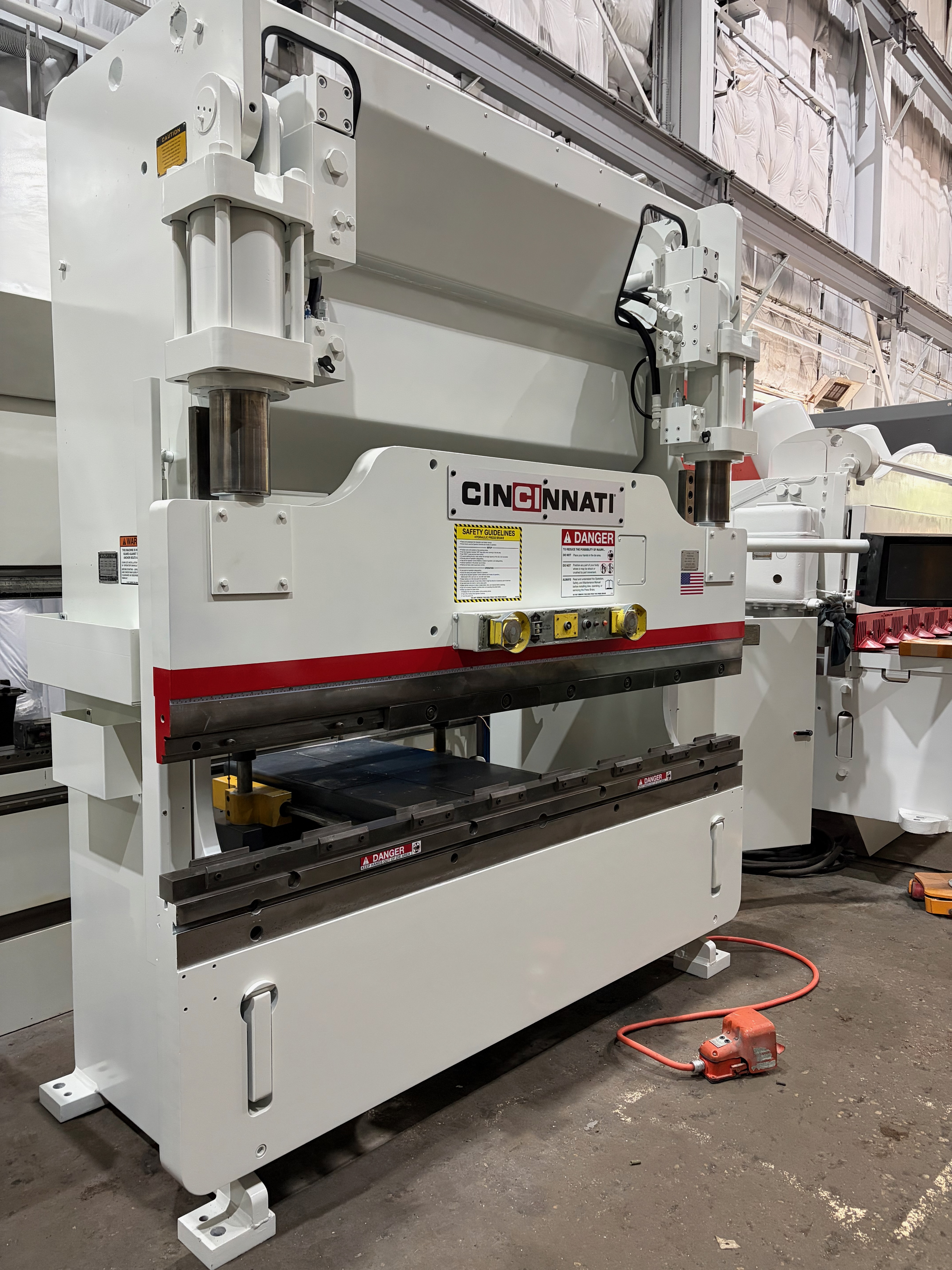

90 Ton X 8’ Cincinnati Model 90CBII CNC Press Brake
Pre Owned Cincinnati Model 90CBII CNC Press Brake
GENERAL SPECIFICATIONS
Capacity 90 TONS
Overall Length of Bed & Ram 8’
Distance Between Housings ` 8’6 3/4”
Stroke 8”
Open Height 15”
Closed Height 7”
Throat Clearance 7”
Speeds
Approach 260 Inch Per Minute
Form 10-20-80 Inch Per Minute
Return 280 Inch Per Minute
Width at Top of Bed 3 ½”
Main Motor Horsepower 15
EQUIPPED WITH
Updated Cincinnati PC Controls
Two-Axis Cincinnati CNC Back Gauge (X & R)
Transducer Positioned Feedback
Electric Foot Switch
Pedestal Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders
Approximate Overall Weight 13300 Lbs
Approximate Overall Dimensions 8’6.5” L X 50”FB X 110” H
