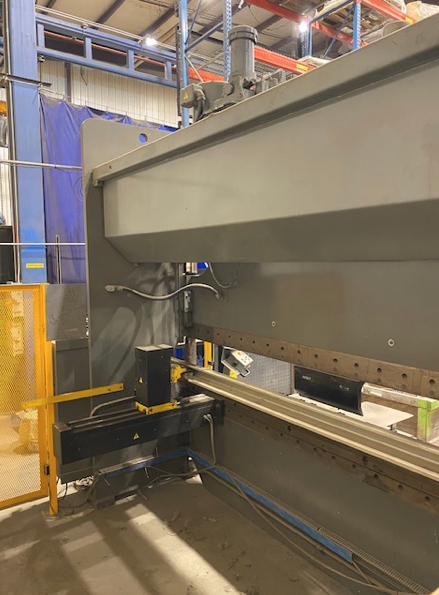

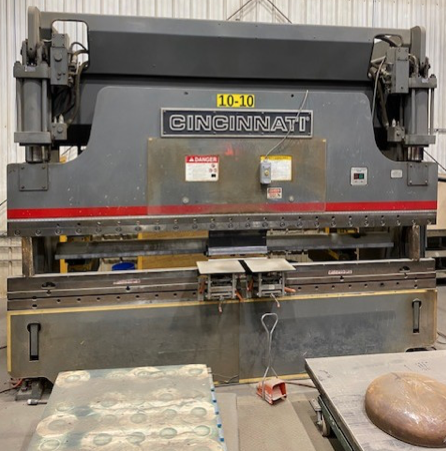

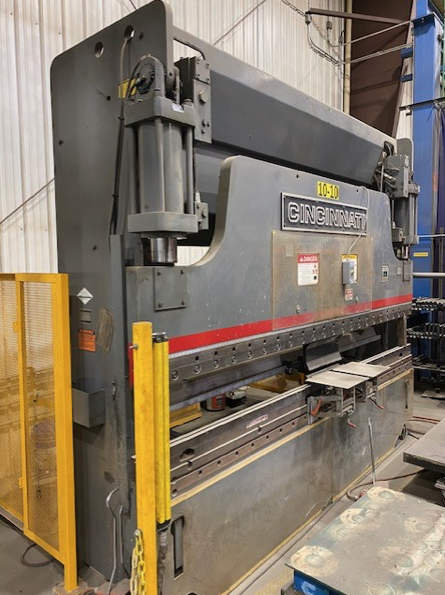

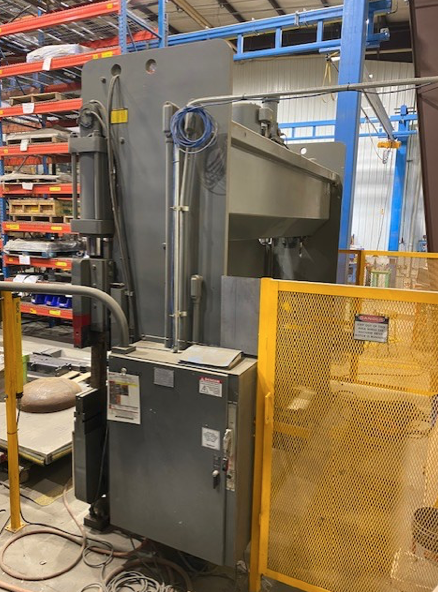

- Pre Owned 2008 Cincinnati Model 90PF8 CNC Press Brake
Serial Number
GENERAL SPECIFICATIONS
Capacity 90 TONS
Overall Length of Bed & Ram 12’
Distance Between Housings ` 10’6 3/4”
Stroke 14” (6 Inch Extra)
Open Height 21”
Closed Height 7”
Throat Clearance 7”
Speeds
Approach 260 Inch Per Minute
Form 1 to 80 Inch Per Minute
Return 1 to 280 Inch Per Minute
Width at Top of Bed 3 ½”
Main Motor Horsepower 15
CONTROL FEATURES
Cincinnati PC HMI Control
Part Program Memory
Reverse On Angle
Tool Identification
EQUIPPED WITH
Cincinnati 3 Axis Heavy Duty Back Gauge ( X1, X2 and R)
Transducer Positioned Feedback
Narrow Filler Block
Electric Foot Switch
Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders
Approximate Overall Weight 16800 Lbs
Approximate Overall Dimensions 8’6.5” L X 50”FB X 110” H
