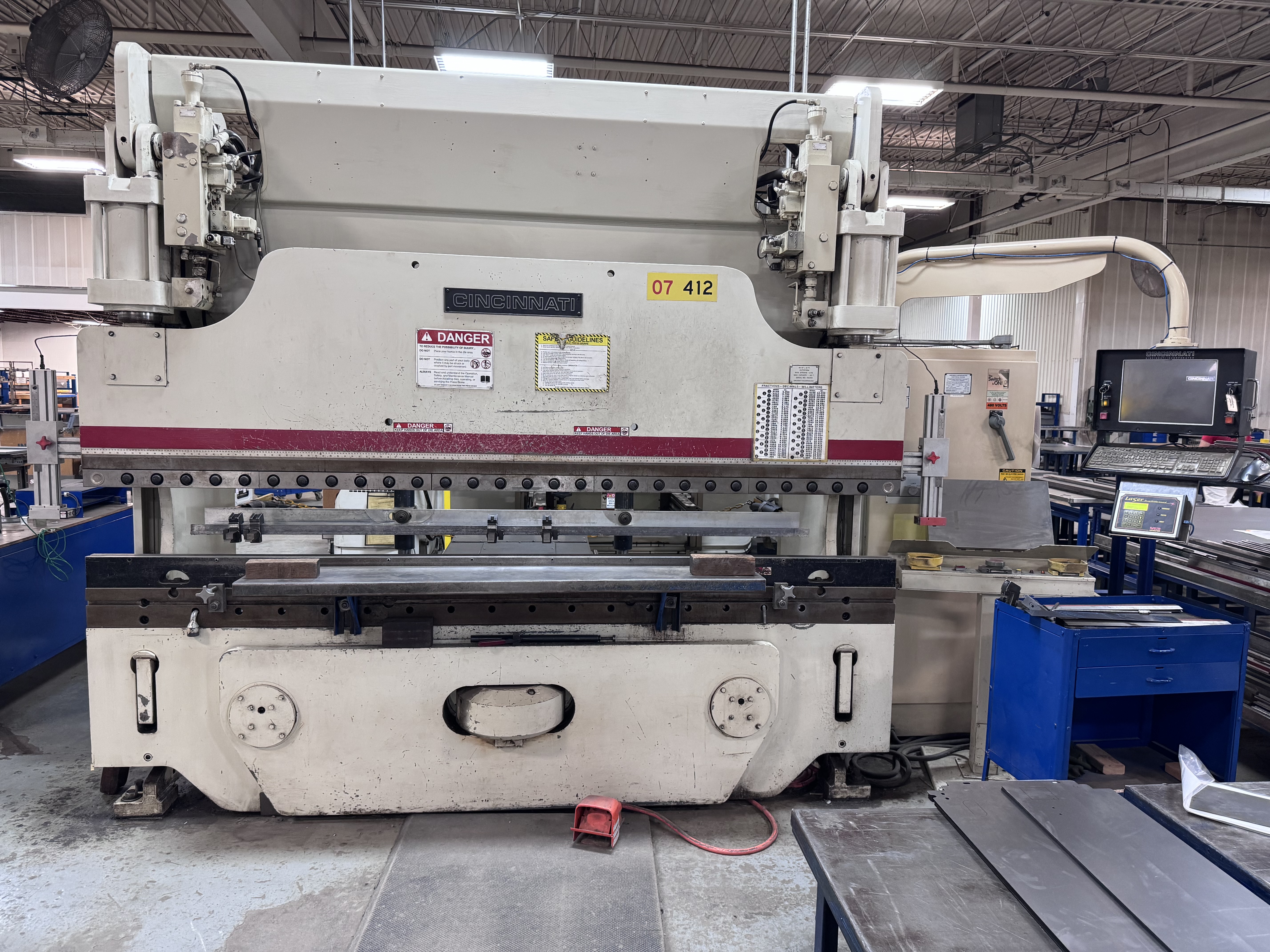

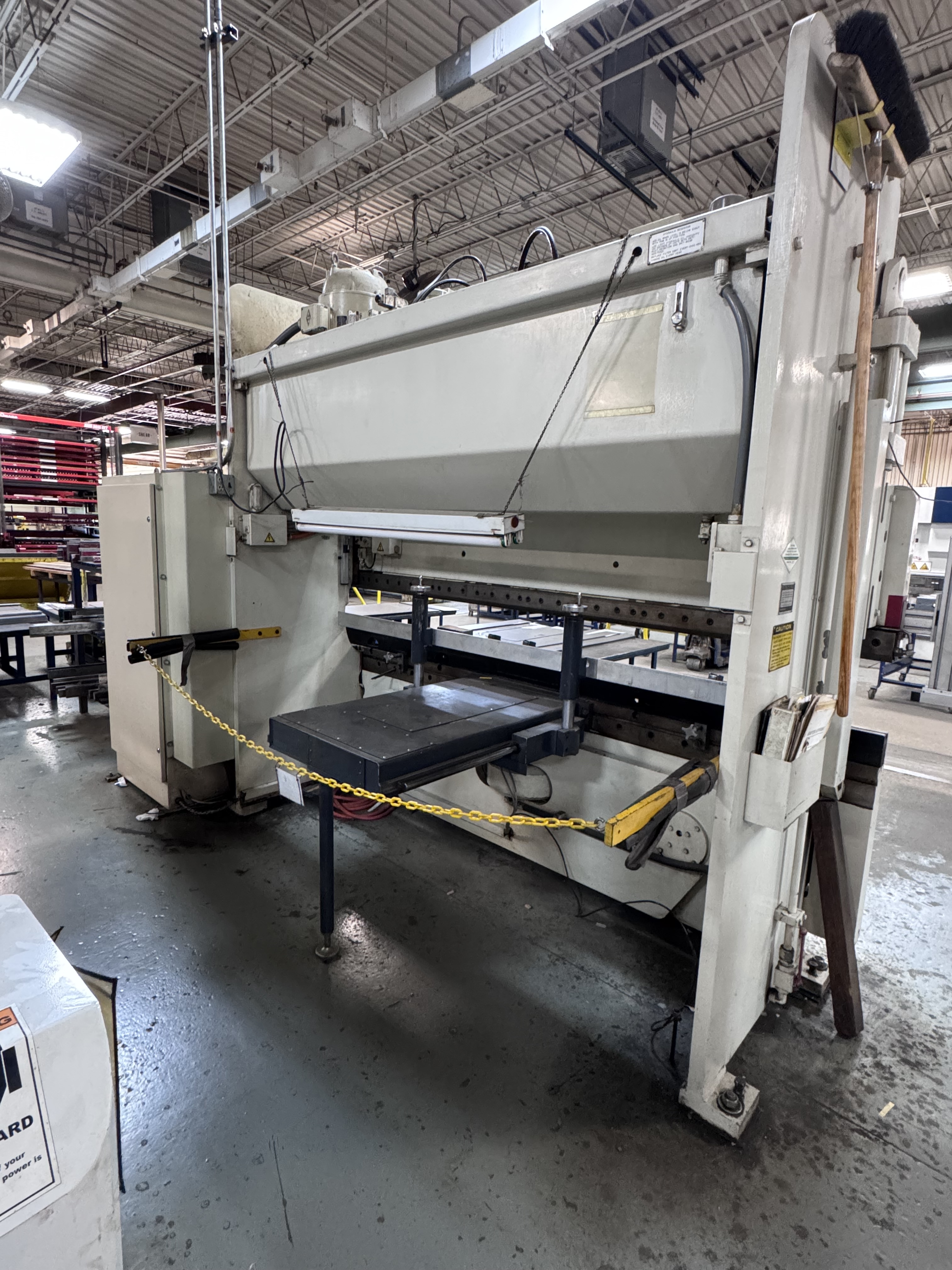

- Pre Owned Cincinnati Model 90AF8 Autoform CNC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Capacity 90 TONS
Overall Length of Bed & Ram 10’
Distance Between Housings 8’ 6 1/2”
Stroke 8”
Open Height 15”
Closed Height 7”
Throat Clearance 12”
Speed
Approach 380 Inch/Minute
Form 1 to 120 Inch/Minute
Return 1 to 405 Inch/Minute
Width At Top Of Bed 31/2”
Main Motor Horsepower 25 HP 460/3/60
EQUIPPED WITH

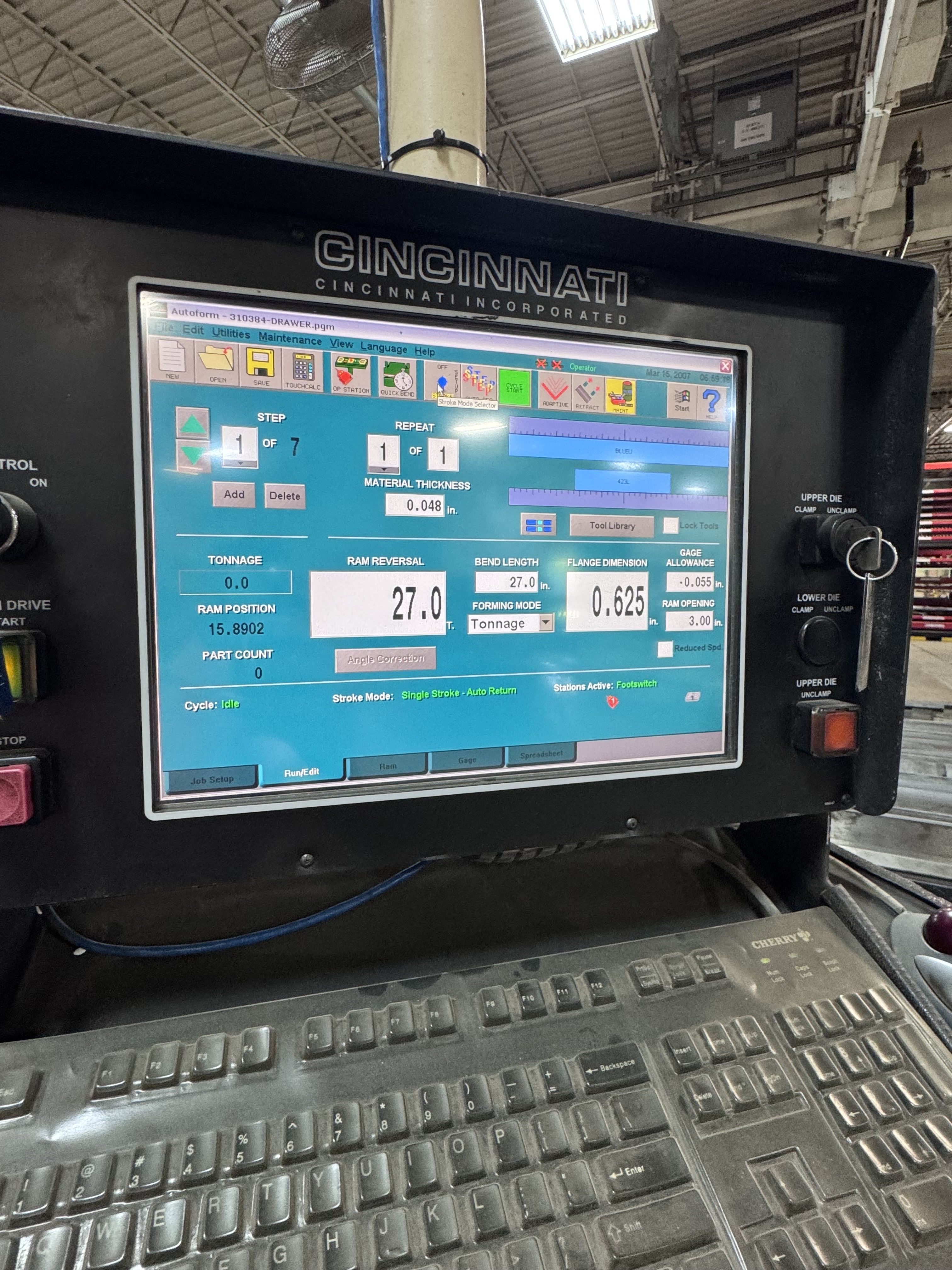

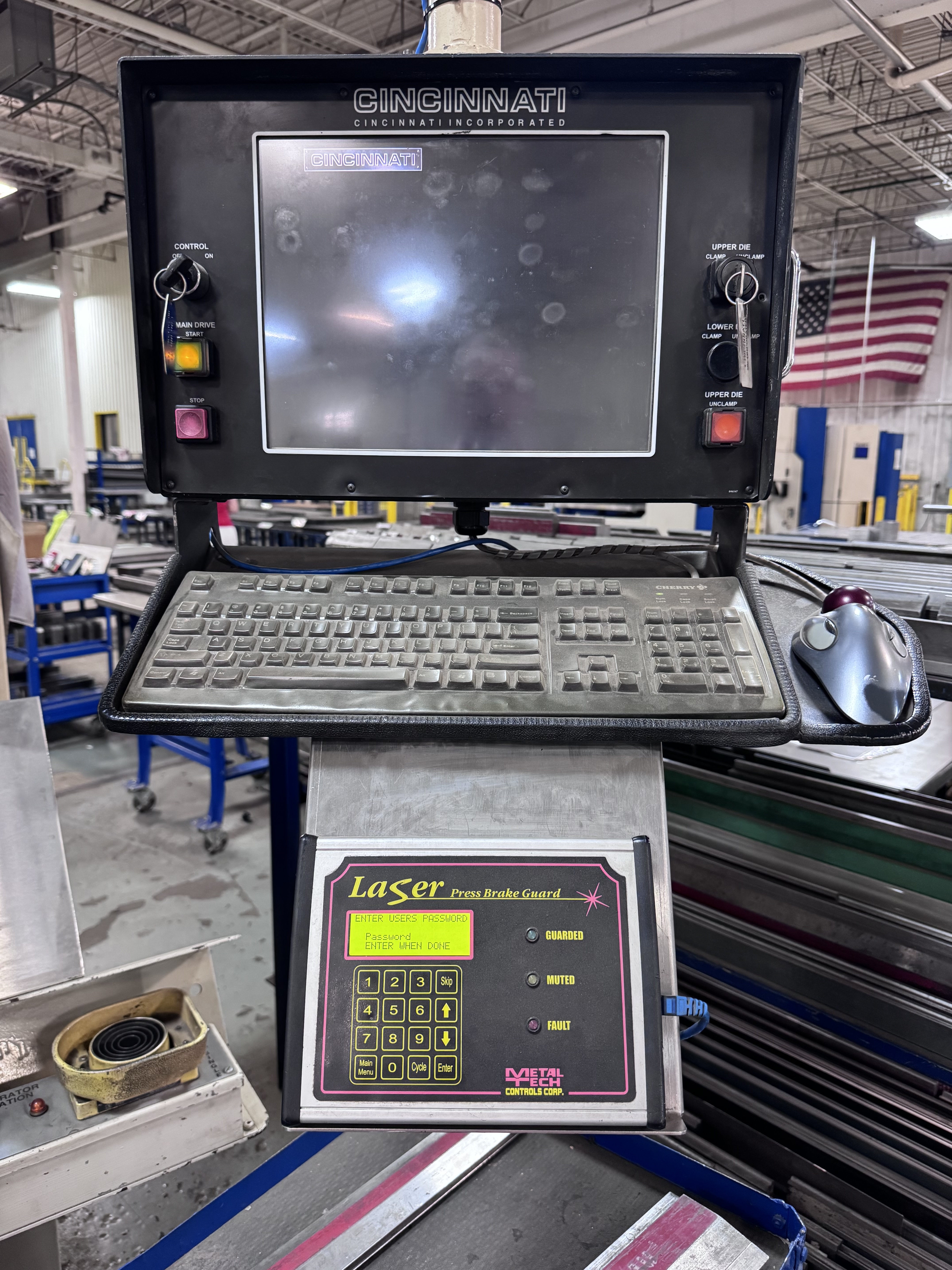

Cincinnati Autoform PC Control
Autocrown Deflection Compansation
24” 2-axis Back Gauge (X & manual R)
Metal Tech Safety Curtains

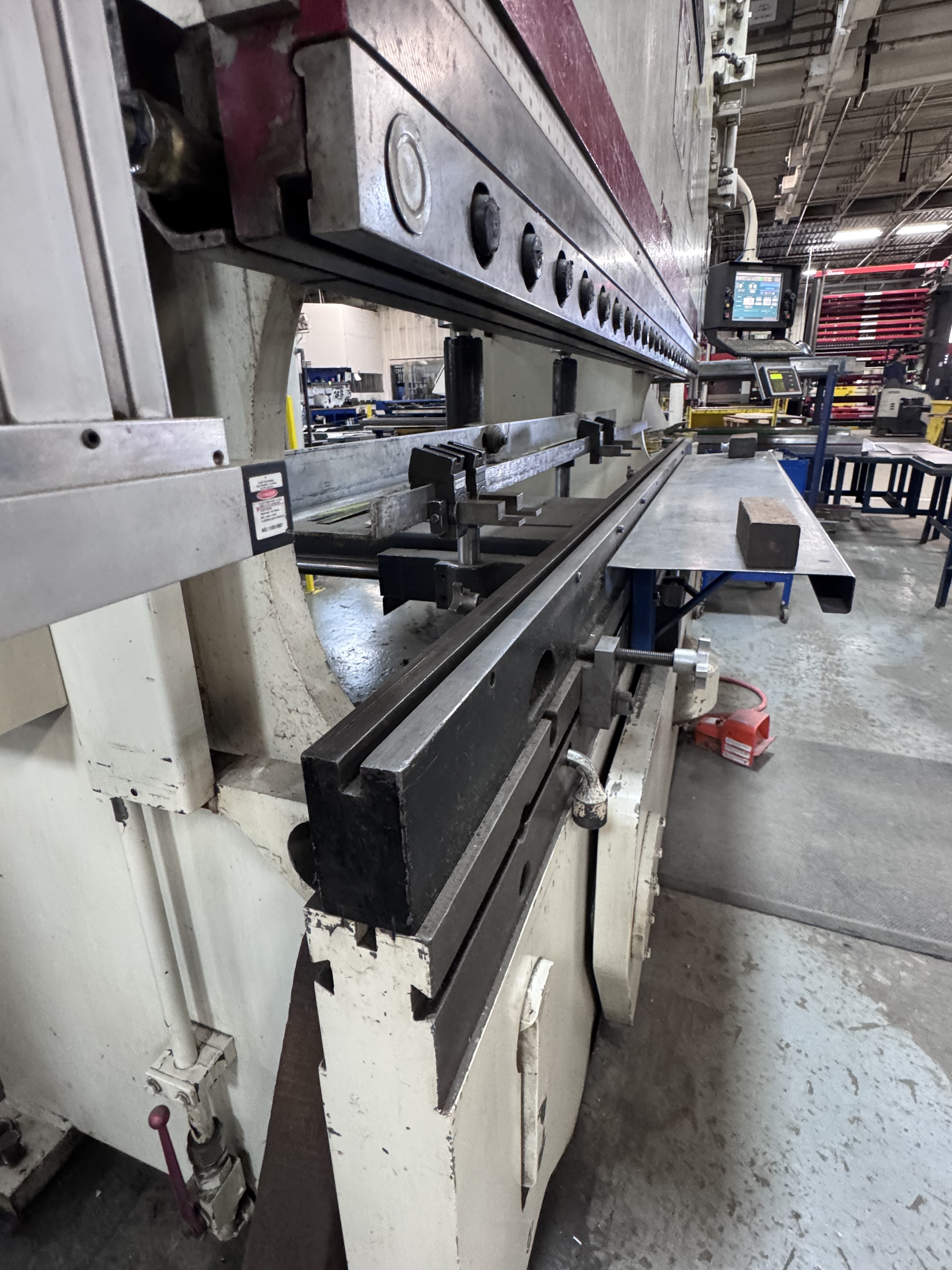

Power Clamp Upper Toolbar
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation
Variable Volume Load Sensing Pump And Servo Hydraulic System
3-Position Electric Foot Switch
Presence Sensing Interface
Palm Button Station
Manuals
Interlocked Construction
Approximate Overall Weight 16800 Lbs
Approximate Overall Dimensions 133” L X 72” W X ’109” H
