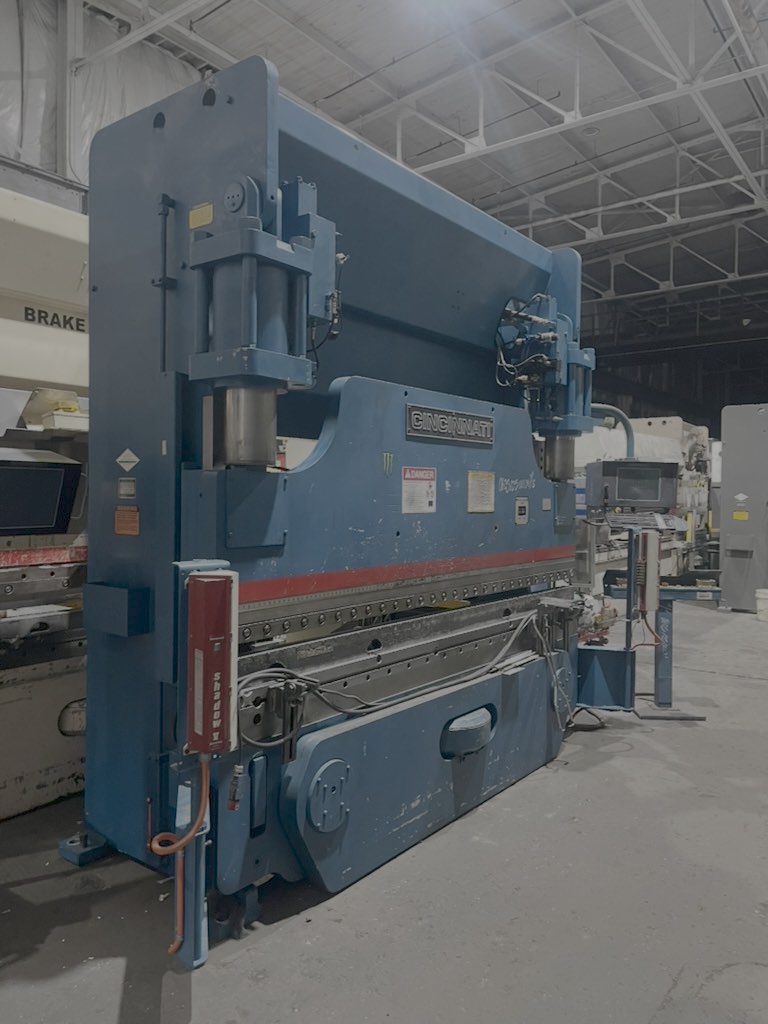

175 Ton X 10’ Cincinnati Model 176A8 Autoform CNC Hydraulic Press Brake

1. Pre Owned Cincinnati Model 176A8 Autoform CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS

Capacity 175 TONS

Overall Length of Bed & Ram 10’

Distance Between Housings 6’ 6 1/2”

Stroke 10”

Open Height 17”

Closed Height 7”

Throat Clearance 12”

Speed

Approach 260 Inch/Minute

Form 1 to 65 Inch/Minute

Return 1 to 290 Inch/Minute

Width At Top Of Bed 4 1/2”

Main Motor Horsepower 25 HP   460/3/60

EQUIPPED WITH

Cincinnati Human Machine Interface

Industrial PC Based Control

17.1” TFT Touchscreen Display

Tool Library

CAD Design Software

Dynamic Thickness Compensation

Adaptive Control Mode

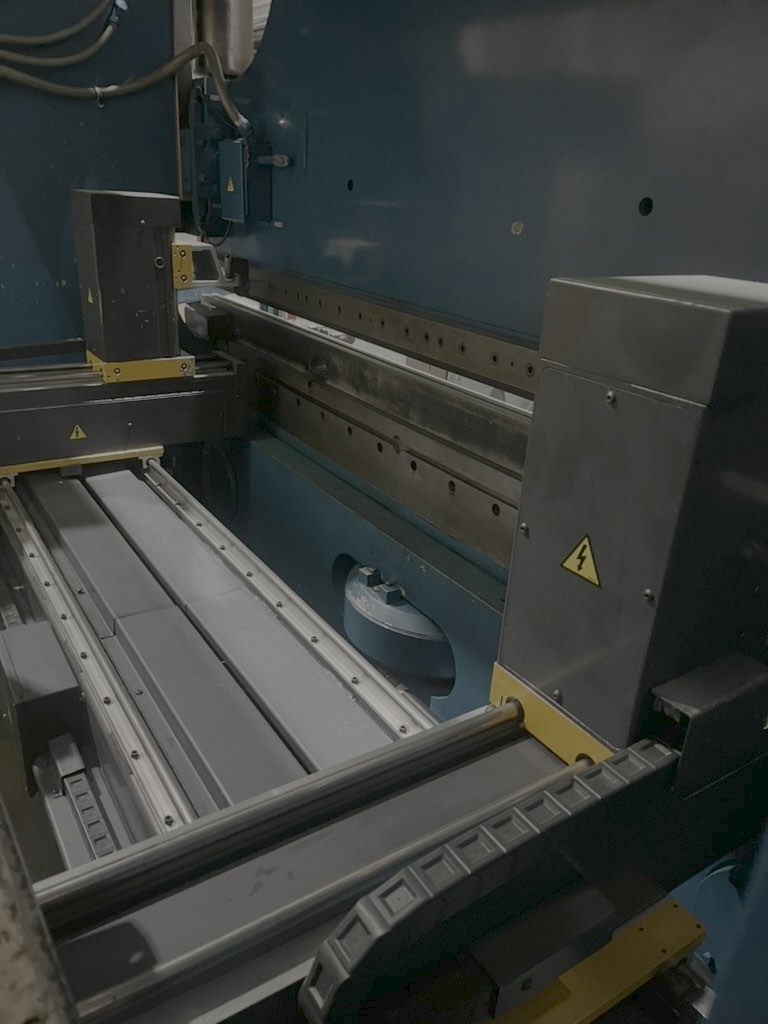

6-Axis Heavy Duty  Back Gauge  (X1, X2, R1, R2, Z1, Z2)

AutoCrown Deflection Compensation

Shadow 5 Safety Curtains

Power Clamp Die Clamp Bolts on 6” Centers

Bed & Ram Machined and Drilled for 7 3/4” Angle Brackets

Precision Ram Leveling With Dual Linear Glass Scale Encoders

Off Load Center Compensation

Variable Volume Load  Sensing Pump And Servo Hydraulic System

3-Position Electric Foot Switch

Control Mounted Palm Button Station

Manuals

Approximate Overall Weight  28525 Lbs

Approximate Overall Dimensions 13’ L  X 6’ W  X 135 1/2” H
