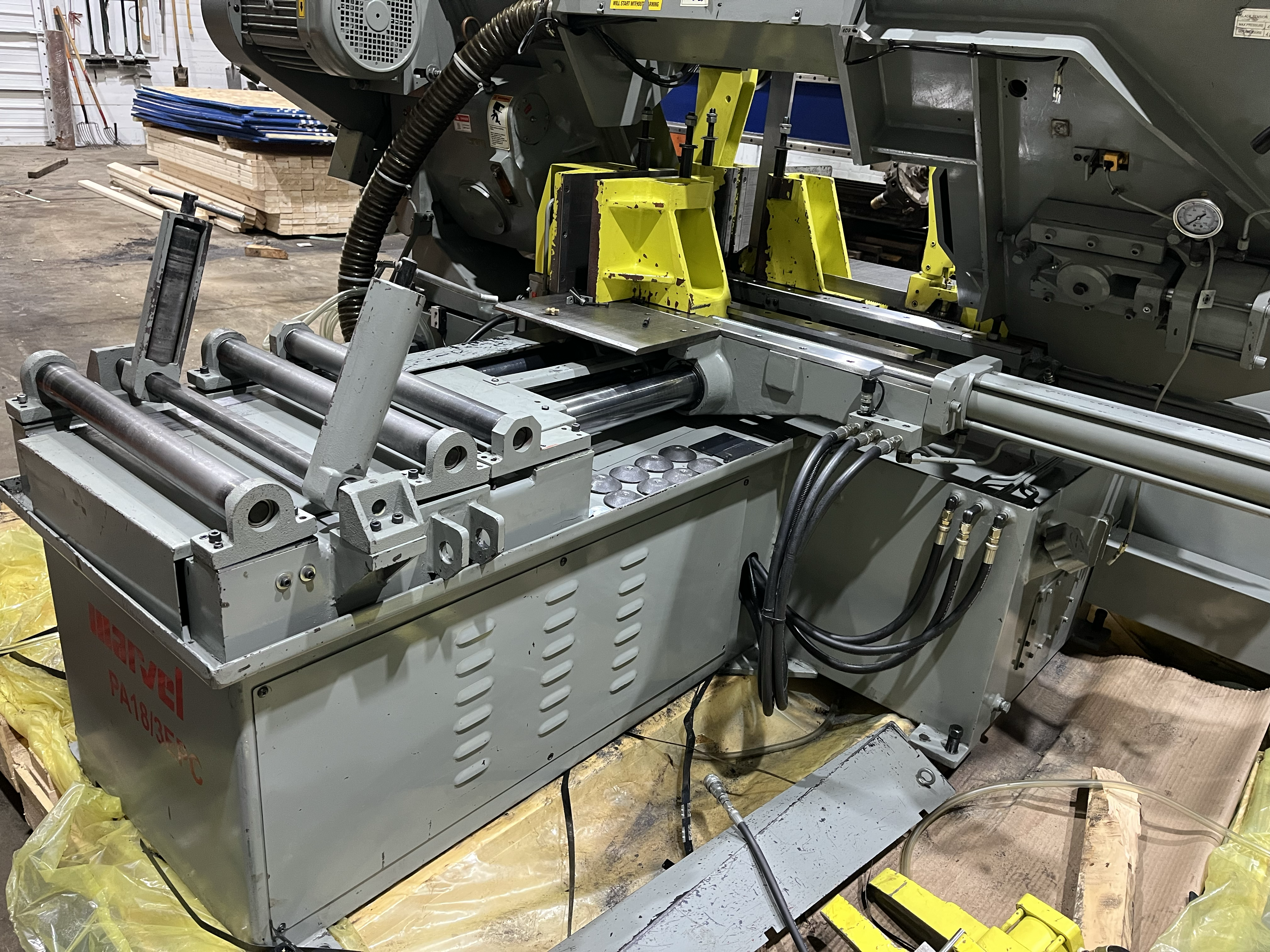

2018 Marvel Model PA18/3/EPC Horizontal Production Band Saw

Pre Owned 2018  Marvel Model PA18/3/EPC Horizontal Production Band Saw

General Specifications

Capacity 18" X 2118"

Blade 1.5” X 15’4”

Blade Speeds 60 - 330 FPM (INF. VARIABLE)

Main Motor 7.5 HP

Hydraulic Motor 2HP

Coolant Motor1/4 HP

Equipped With

EPC Programmable Touchscreen Control

Hydraulic Vise

Shuttle Infeed, 24” Multi-Cycle Index

Hydraulic Blade Tension

(2) Hydraulic Bundling Attachments

Coolant

Screw Auger Chip Conveyor

Approximate Overall Weight 5300 Lbs

Approximate Overall Dimensions 88” X 98” W X 93” T
