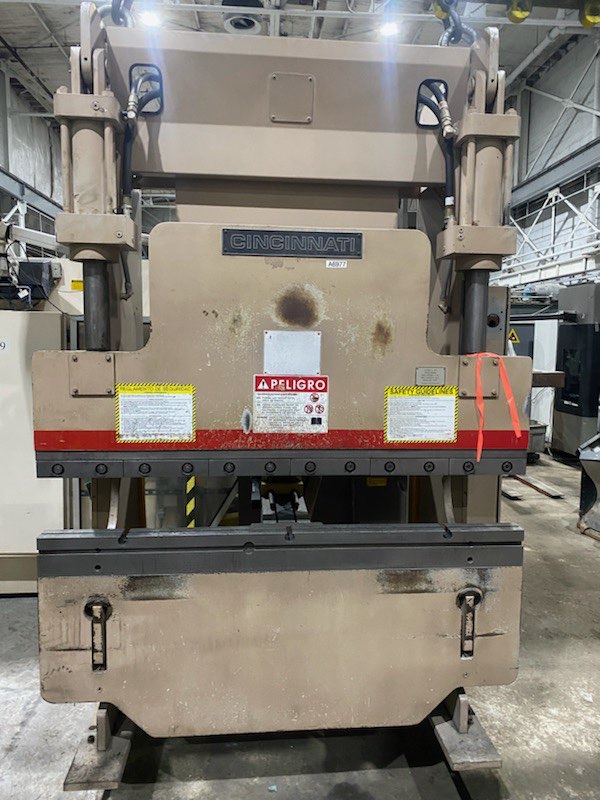

60 Ton X 6’ Cincinnati Model 60CBII CNC Press Brake

1. Pre Owned Cincinnati Model 60CBII CNC Press Brake

GENERAL SPECIFICATIONS

Capacity 60 TONS

Overall Length of Bed & Ram 6’

Distance Between Housings ` 4’6 3/4”

Stroke (Extra 3’ From Standard) 11”

Open Height 20”

Closed Height 9”

Throat Clearance 10”

Speeds

Approach 180 Inch Per Minute

Form 10-35-70 Inch Per Minute

Return 280 Inch Per Minute

Width at Top of Bed 3 ½”

Main Motor Horsepower 7.5

CONTROL FEATURES

Cincinnati CBII Control

Part Program Memory

Reverse On Angle

Tool Identification

Multiple Steps

EQUIPPED WITH

2-Axis Back Gauge  (X & R)

Transducer Positioned Feedback

Narrow Filler Block

Electric Foot Switch

Palm Button Station

Manuals

Interlocked Construction

Clevis Mounted Self Aligning Cylinders

Approximate Overall Weight 8600 Lbs

Approximate Overall Dimensions 6’6.5” L X 50”FB X 101” H
