44 Ton X 1M 2013 Ermak  Micro Bend CNC CNC Hydraulic Press Brake

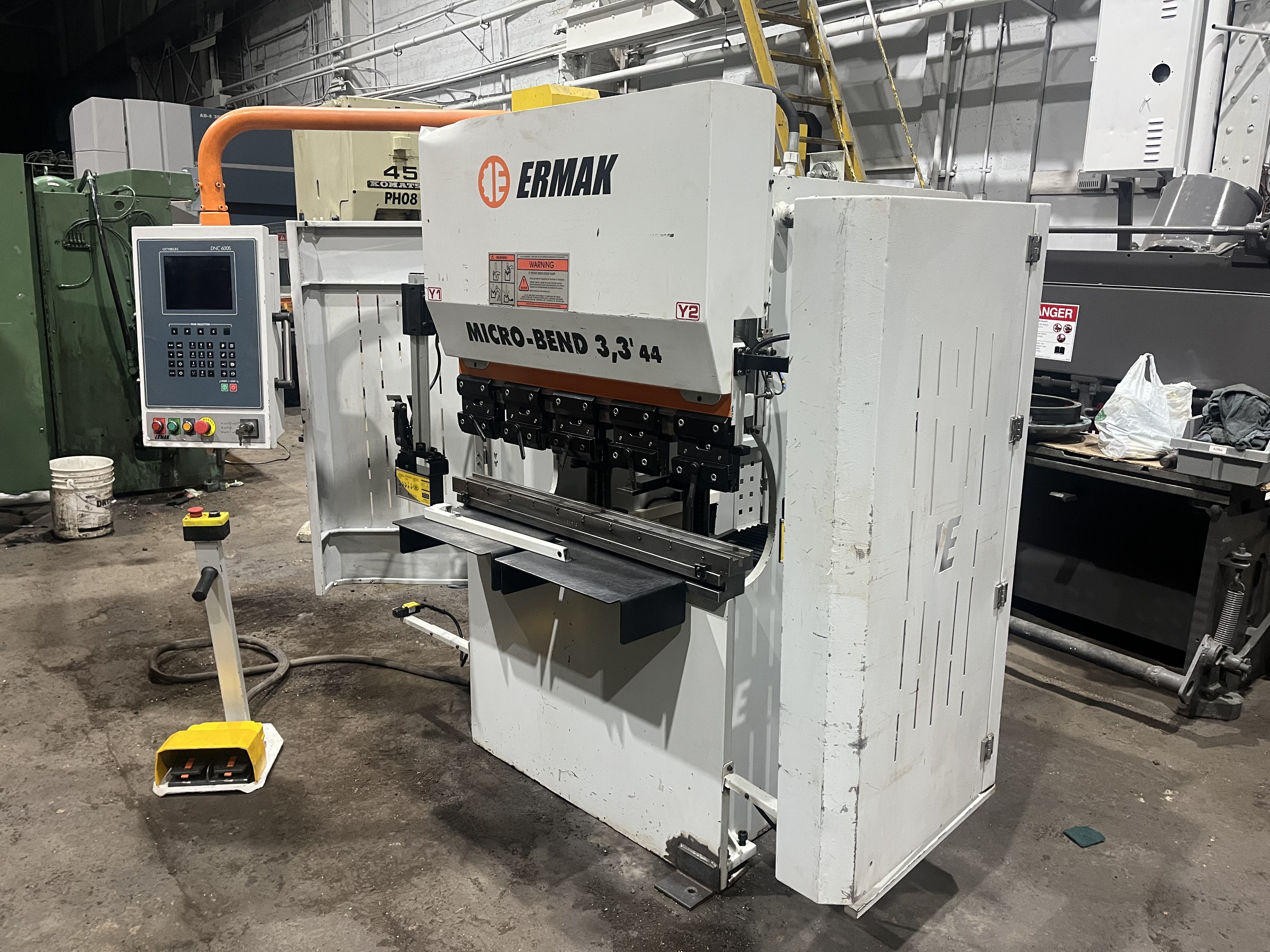

1)Pre Owned 2013 Ermak  Micro Bend CNC CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS

Tonnage Capacity:         44  US Tons

Overall Length of Bed & Ram: 39.7”

Distance Between Housings: 31.496”

Stroke:                         3.93”

Open Height:                 25.6”

Speeds

Approach 4.33 IPS

Form 0.33 IPS

Return 5.12 IPS

Back Gauge Speed 9.1”

Oil Capacity 19.4 US Gallons

Main Motor Horsepower 6  230/480/3/60

EQUIPPED WITH

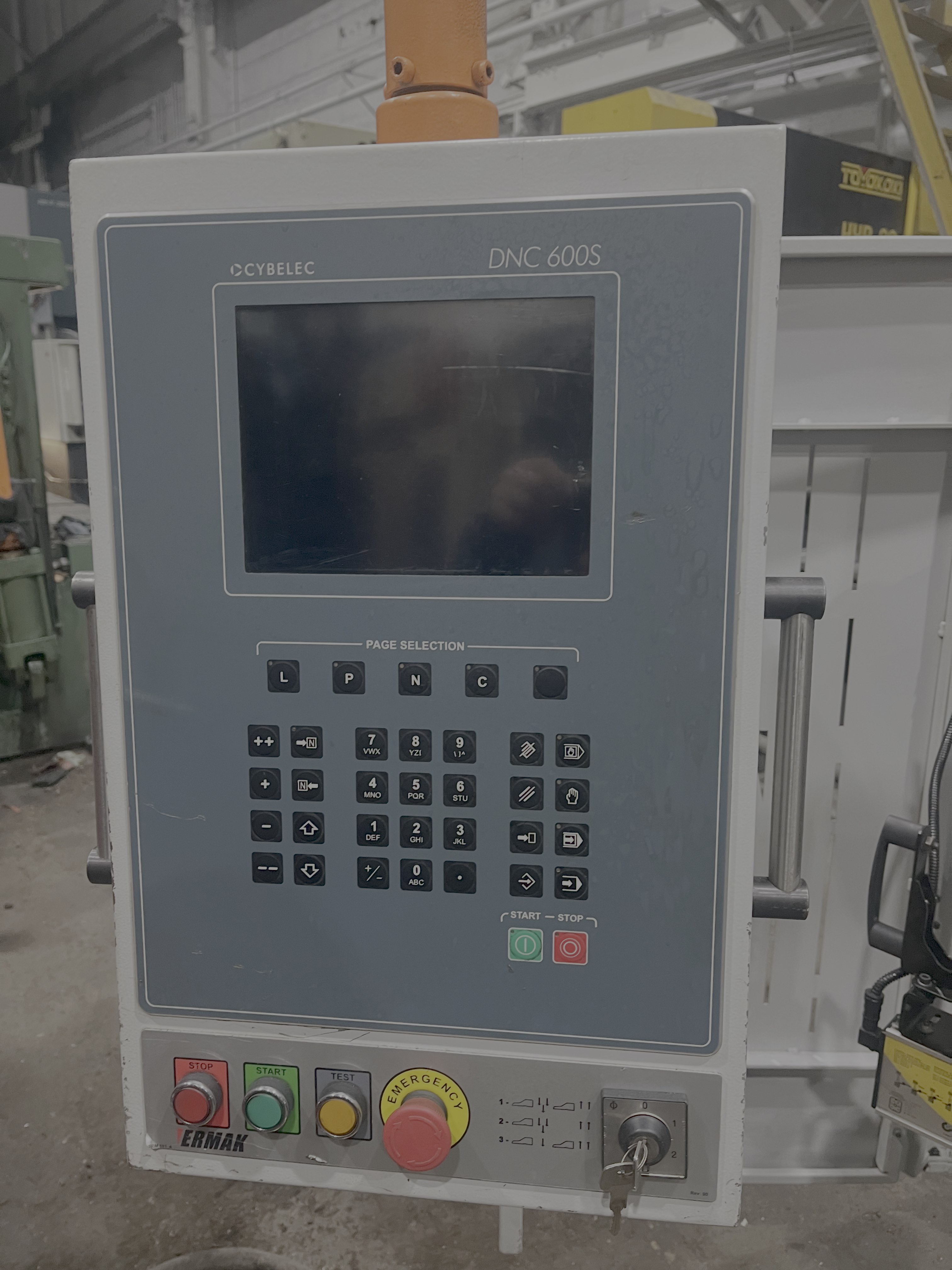

Cybelec DNC 600S Series Control

Y1, Y2 Ram Control

Fiedler Safety Curtains

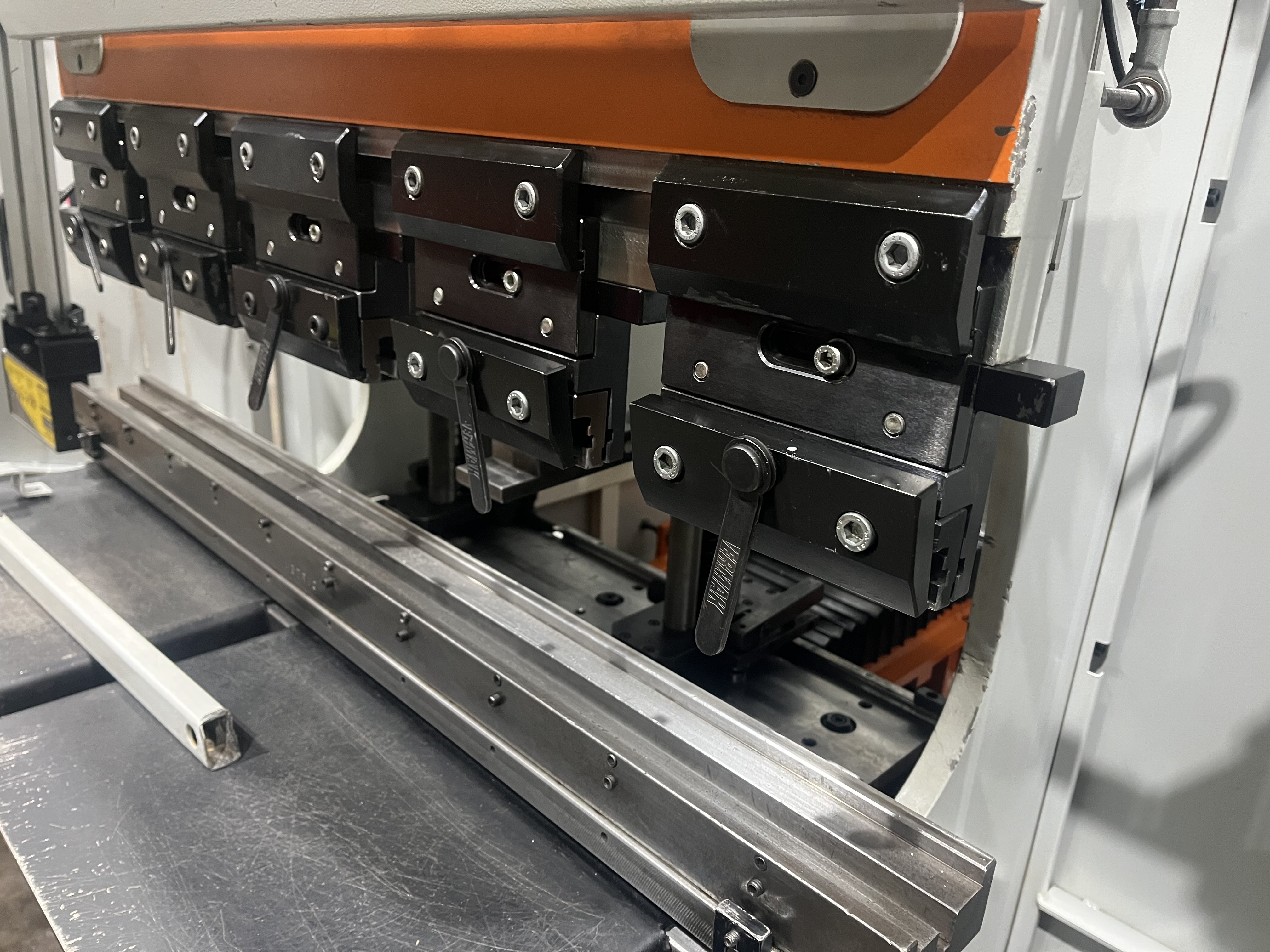

Sectional Ram Clamps

4 Axis Back Gauge (Manual Z1, Z2 R,)

pedestal palm station / Electric Foot Switch

Overall Dimensions Approx. 96 L-R x’  76” F-B x 74”H

Approximate Overall Weight 4101
