Press Brake

350 Ton X 12' Wysong  MTH 350-144 Hydraulic Press Brake

PrintEmail
350 Ton X 12' Wysong  MTH 350-144 Hydraulic Press Brake
Description

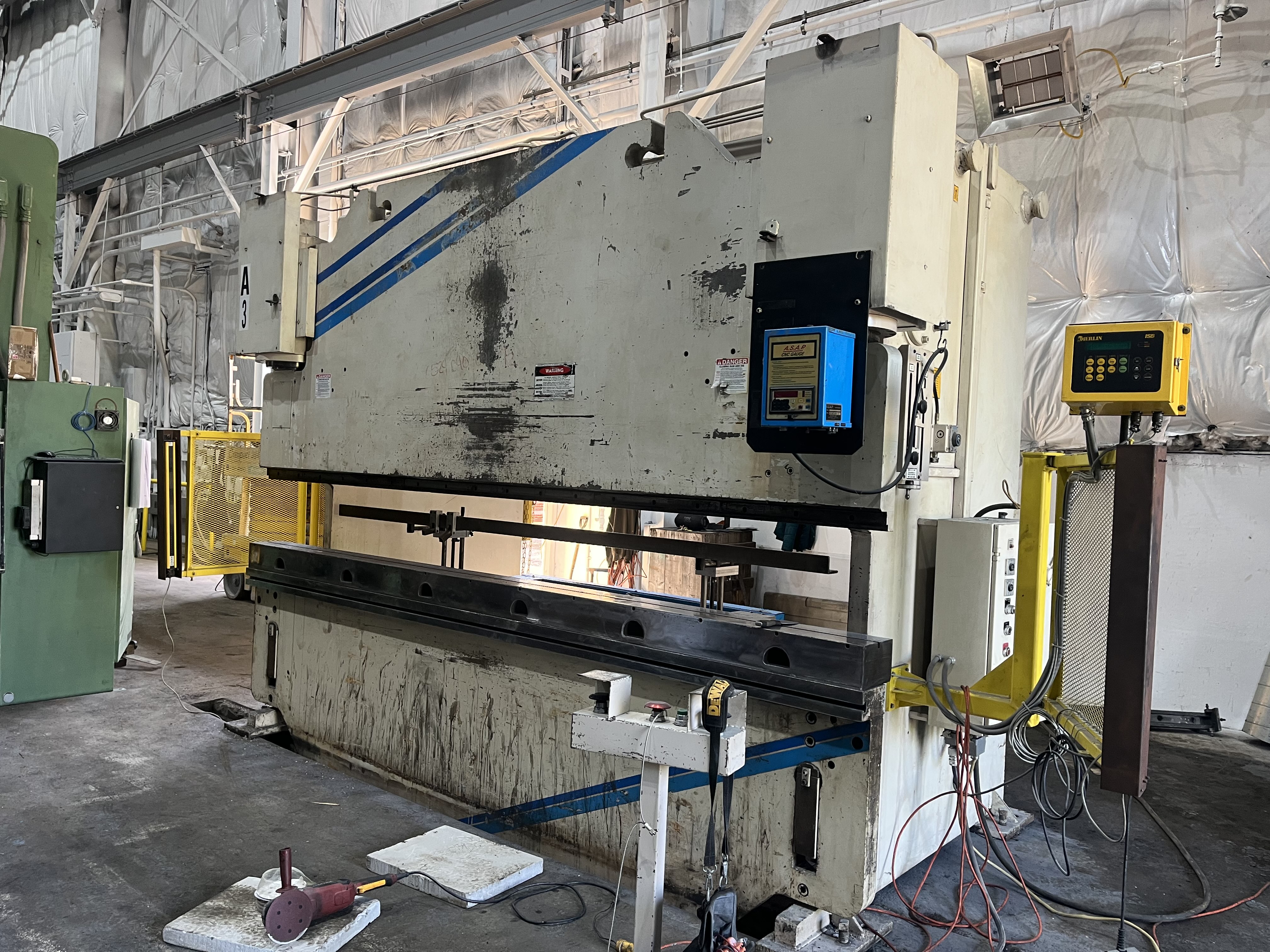

Pre Owned  Wysong  MTH 350-144 Hydraulic Press Brake



GENERAL SPECIFICATIONS

 Capacity                      175 Tos

Overall Length of Bed & Ram            12’

Distance Between Housings            10’6”

Open Height                    19”

Stroke                        10”

Shut Height    (SDAU)                9”

Throat                         10”

Oil Capacity                               99 US Gallons

Speeds

    Rapid Approach              250 IPM

    Press                     15 IPM

    Return                     170 IPM

Main Motor Horsepower                20  2008/230/460



EQUIPPED WITH

Tec Line ASAP 24” Back Gauge with Manual R Axis

Pedestal Palm Button Station / Electric Foot Switch

Variable Tonnage

1-Shot Lube System



Approximate Overall Dimensions              155” X 84” X 105”T

Approximate Overall Weight                   48800 Lbs
