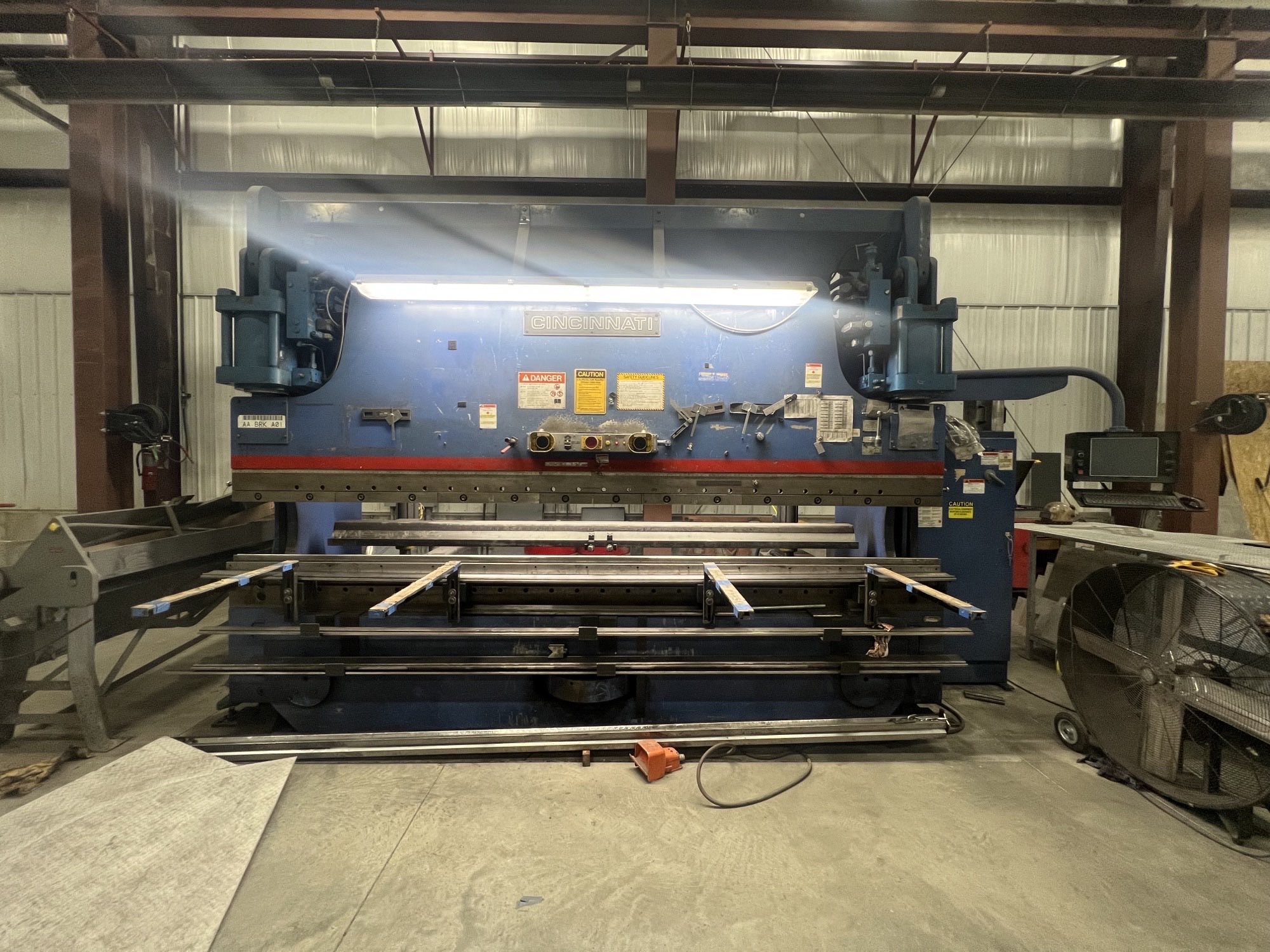

230 Ton X 14’ Cincinnati 230 AF12 Autoform CNC Hydraulic Press Brake

Description

GENERAL SPECIFICATIONS

Capacity 230 TONS

Overall Length of Bed & Ram 14’

Distance Between Housings 12’ 6 1/2”

Stroke 10”

Open Height 17”

Closed Height 7”

Throat Clearance 12”

Speed

Approach 230 Inch/Minute

Form 1 to 45 Inch/Minute

Return 1 to 250 Inch/Minute

Width At Top Of Bed 5 1/2”

Main Motor Horsepower 25 HP 460/3/60

EQUIPPED WITH

Cincinnati Human Machine Interface

Industrial PC Based Control

15.1” TFT Touchscreen Display

Tool Library

CAD Design Software

Dynamic Thickness Compensation

Adaptive Control Mode

EQUIPPED WITH

2 Axis 24” Plate Gauge (X & R)

AutoCrown Deflection Compensation

Precision Ram Leveling With Dual Linear Glass Scale Encoders

Off Load Center Compensation

Variable Volume Load Sensing Pump And Servo Hydraulic System

3-Position Electric Foot Switch

Presence Sensing Interface

Palm Button Station

Manuals

Interlocked Construction

Approximate Overall Weight 48,000 Lbs

Approximate Overall Dimensions 168" L x 72" W x 127" H
