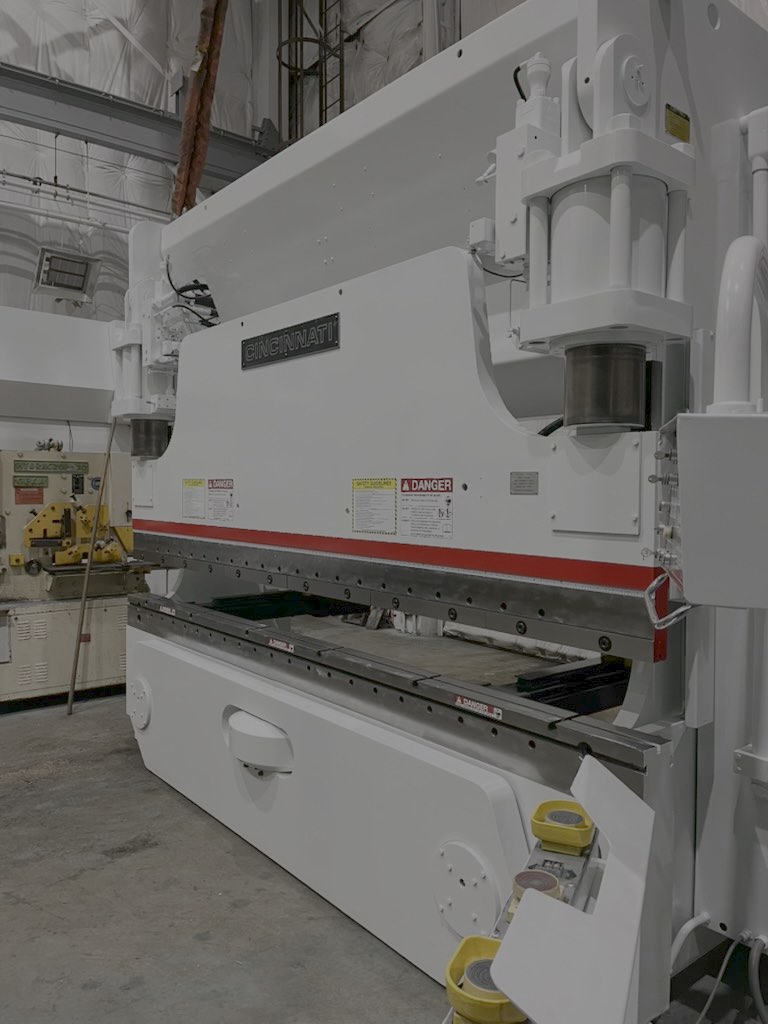

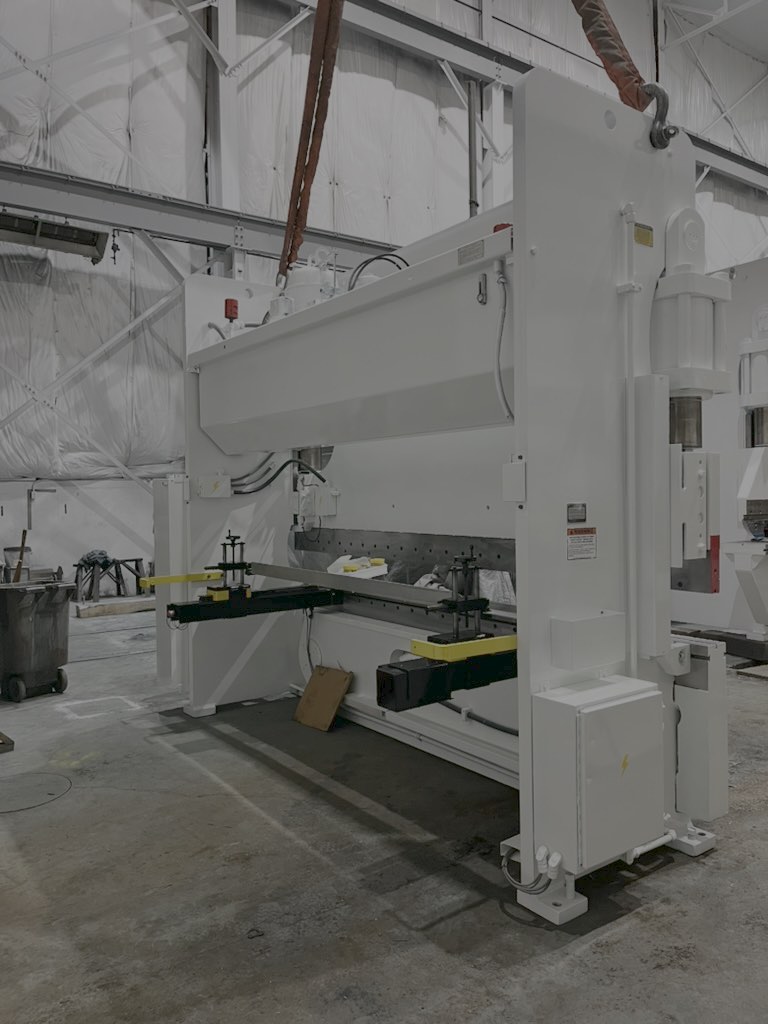

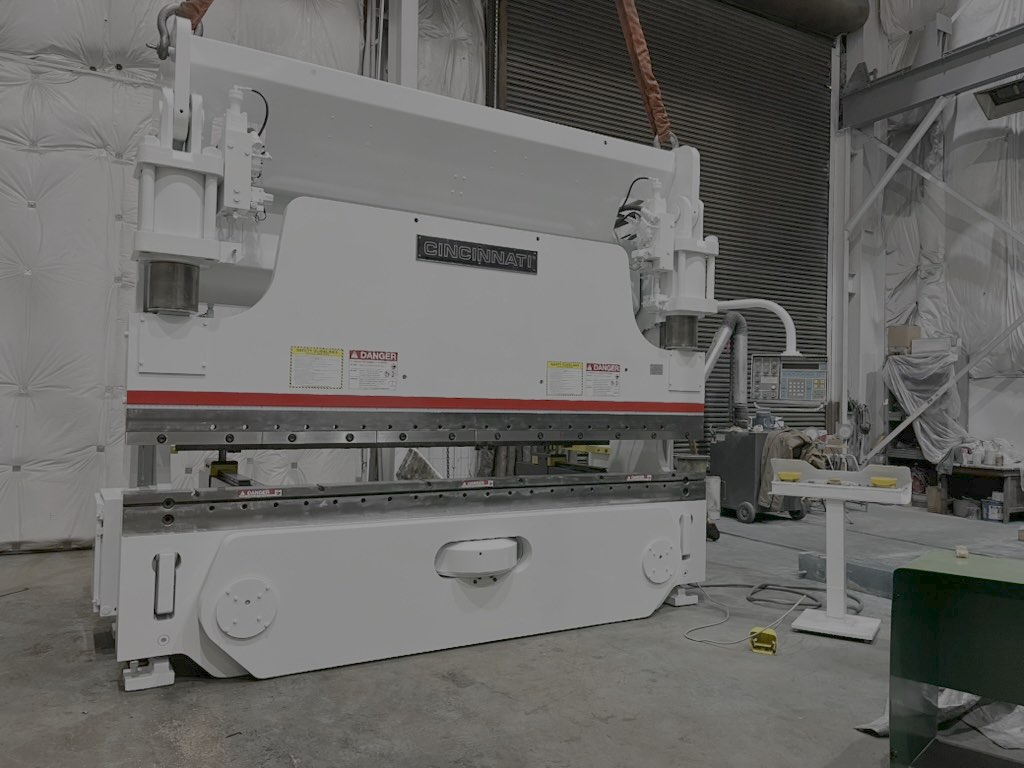

230 Ton X 12’ Cincinnati Model 230FMII CNC Hydraulic Press Brake

(1) Pre Owned Cincinnati Model 230FMII CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS

Capacity 230 TONS

Overall length of Bed & Ram  12”

Distance Between Housings 10’ 6 1/2”

Stroke 16”

Open Height 19”

Closed Height 7”

Throat Clearance  14”

Speeds

Approach 200 Inch//Minute

Form 1 to 45 Inch/Minute

Return 1 to 250 inch /Minute

Width at Top of Bed 5 1/2”

Main Motor Horsepower 25 HP 460/3/60

EQUIPPED WITH

Cincinnati FMII ControlL

24” CNC Back Gauge

Precision Ram leveling with Dual Linear Glass Scales

Off Load Center Compensation

Variable Volume Load Sensing Pump with Servo Hydraulic System

3-Position Electric Foot switch

Palm Button Station

Manual

Interlocked Construction
