175 Ton X 12’ Cincinnati Model 175 Proform  CNC Hydraulic Press Brake

1. Pre Owned Cincinnati Model 175 Preform  CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS

Capacity 175 TONS

Overall Length of Bed & Ram 12’

Distance Between Housings 18’ 6 1/2”

Stroke 16” (6” Extended)

Open Height 17”

Closed Height 7”

Throat Clearance 8”

Speed

Approach 180 Inch/Minute

Form 1 to 40 Inch/Minute

Return 200 Inch/Minute

Width At Top Of Bed 3 1/2”

Main Motor Horsepower 15 HP   460/3/60

EQUIPPED WITH

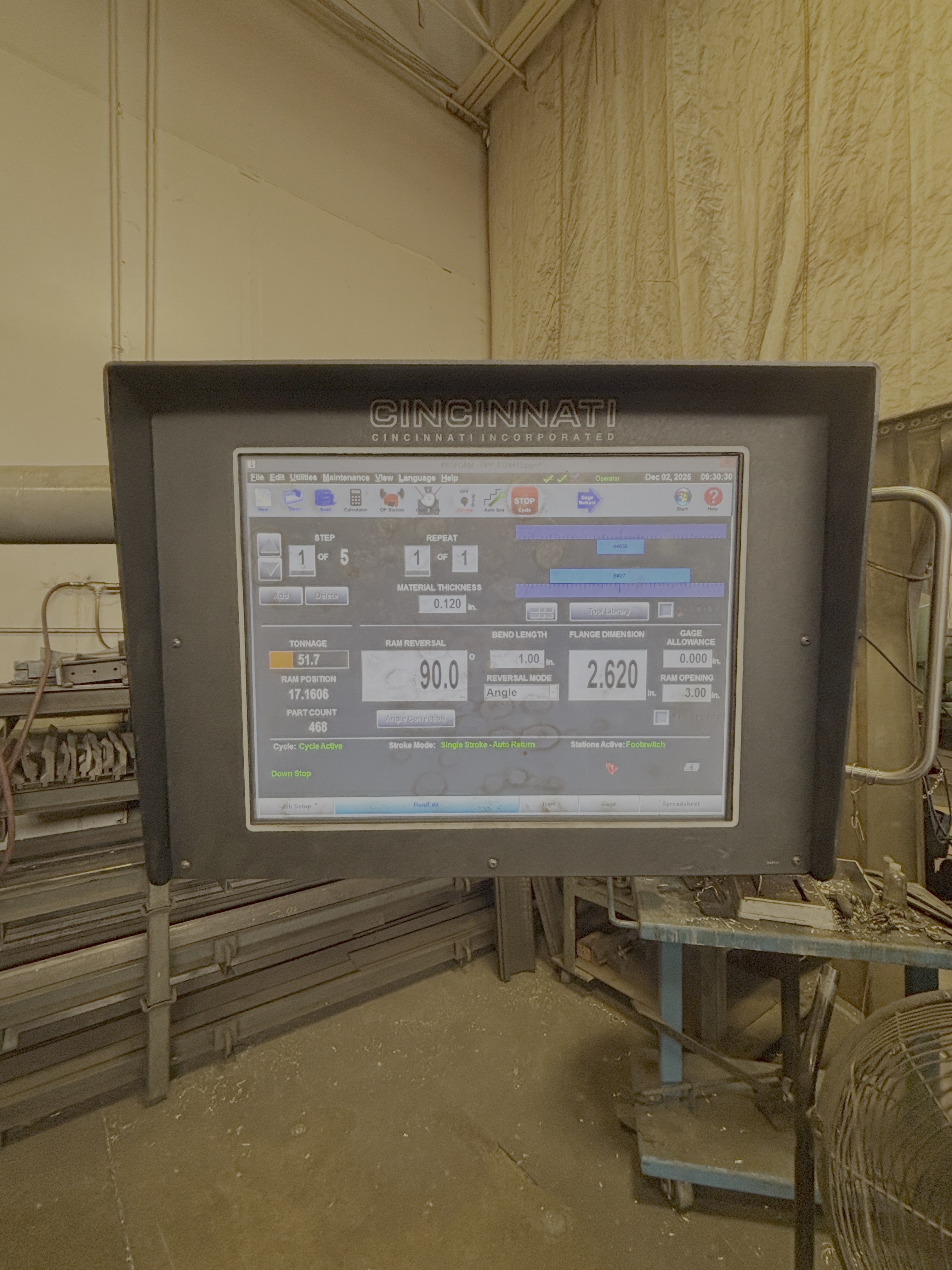

Cincinnati PC Control

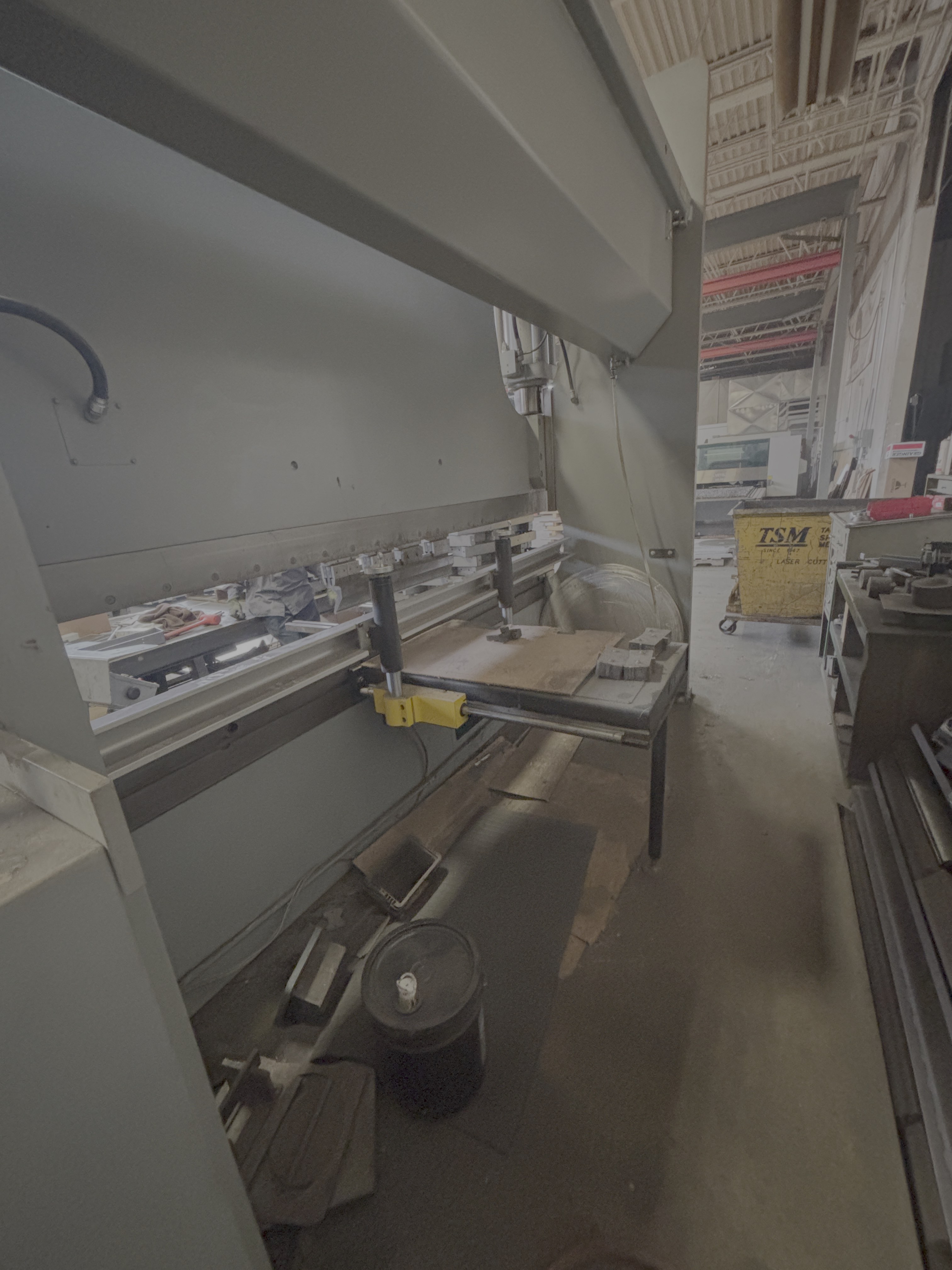

Cincinnati 24” 2-Axis Back Gauge Gauge  (X1,X2)

Clamps on 6” Centers

Precision Ram Leveling With Dual Linear Glass Scale Encoders

Off Load Center Compensation

Servo Hydraulic System

Dual Electric Foot Switch

Presence Sensing Interface

Control Mounted Palm Button Station

Manuals

Interlocked Construction

Approximate Overall Weight  26500

Approximate Overall Dimensions 11’1” L  X  50”W  X ’ 135”H
