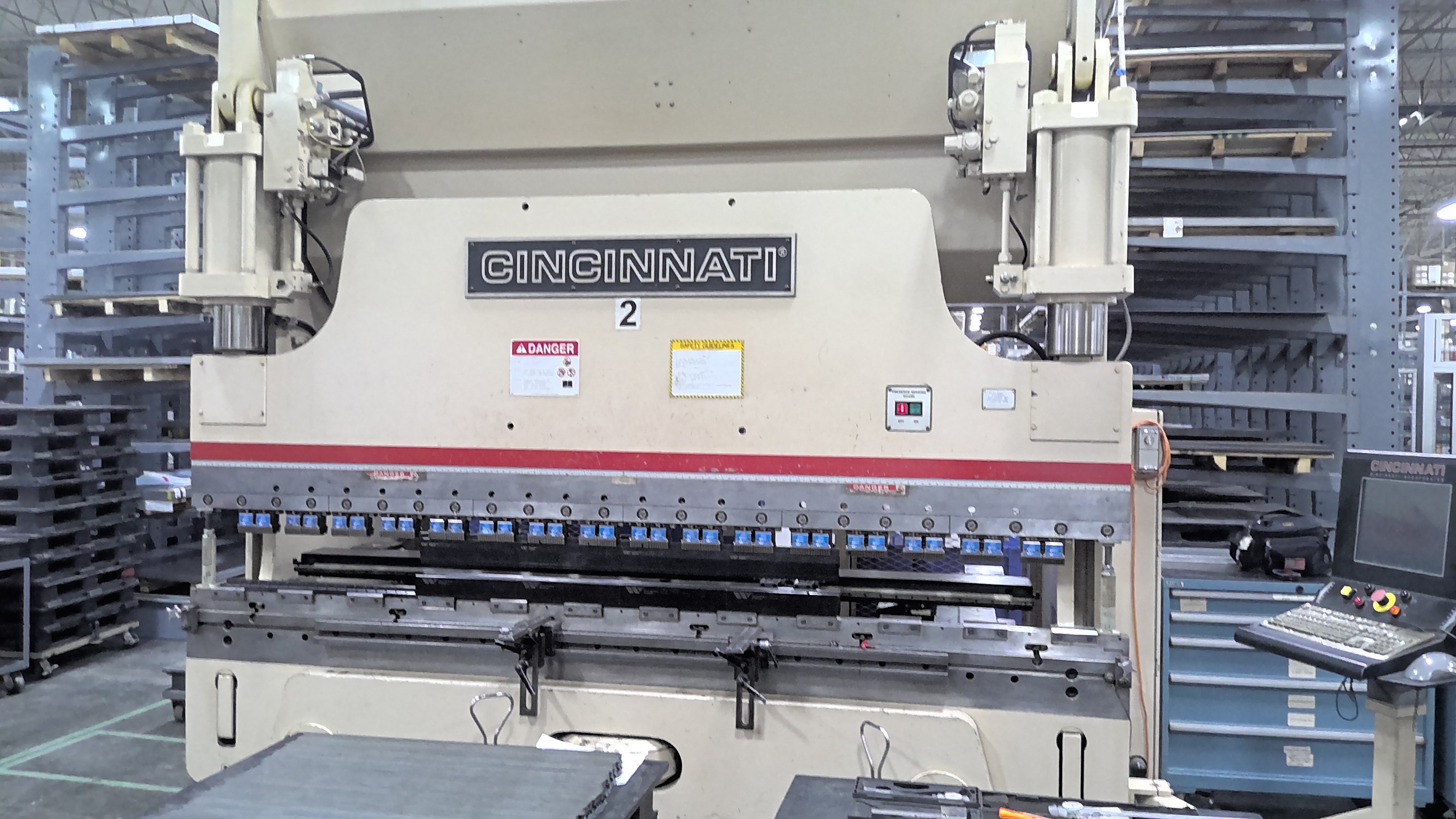

175 Ton X 12’ Cincinnati Model1750AF10+  Autoform Plus CNC Hydraulic Press Brake     New 2007

1. Pre Owned Cincinnati Model1750AF10+  Autoform Plus CNC Hydraulic Press Brake     New 2005

GENERAL SPECIFICATIONS

Capacity 175 TONS

Overall Length of Bed & Ram 12’

Distance Between Housings 10’ 6 1/2”

Stroke 16” (6” Extended)

Open Height 17”

Closed Height 7”

Throat Clearance 12”

Speed

Approach 260 Inch/Minute

Form 1 to 65 Inch/Minute

Return 1 to 290 Inch/Minute

Width At Top Of Bed 5 1/2”

Main Motor Horsepower 25 HP   460/3/60

EQUIPPED WITH

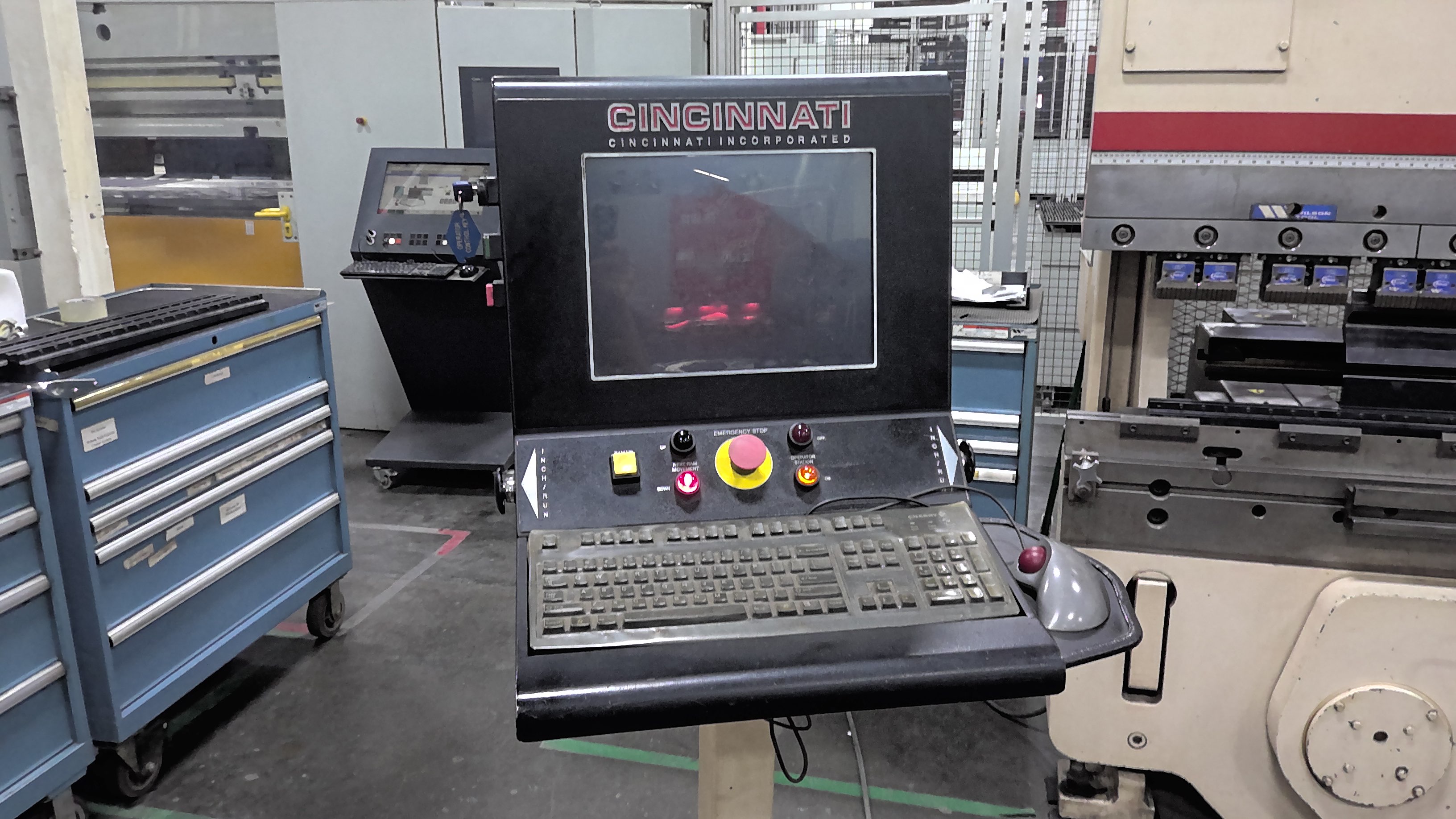

Cincinnati Autoform  PC HMI Control

Industrial PC Based Control

15.1” TFT Touchscreen Display

Tool Library

CAD Design Software

Dynamic Thickness Compensation

Adaptive Control Mode

Autocrown

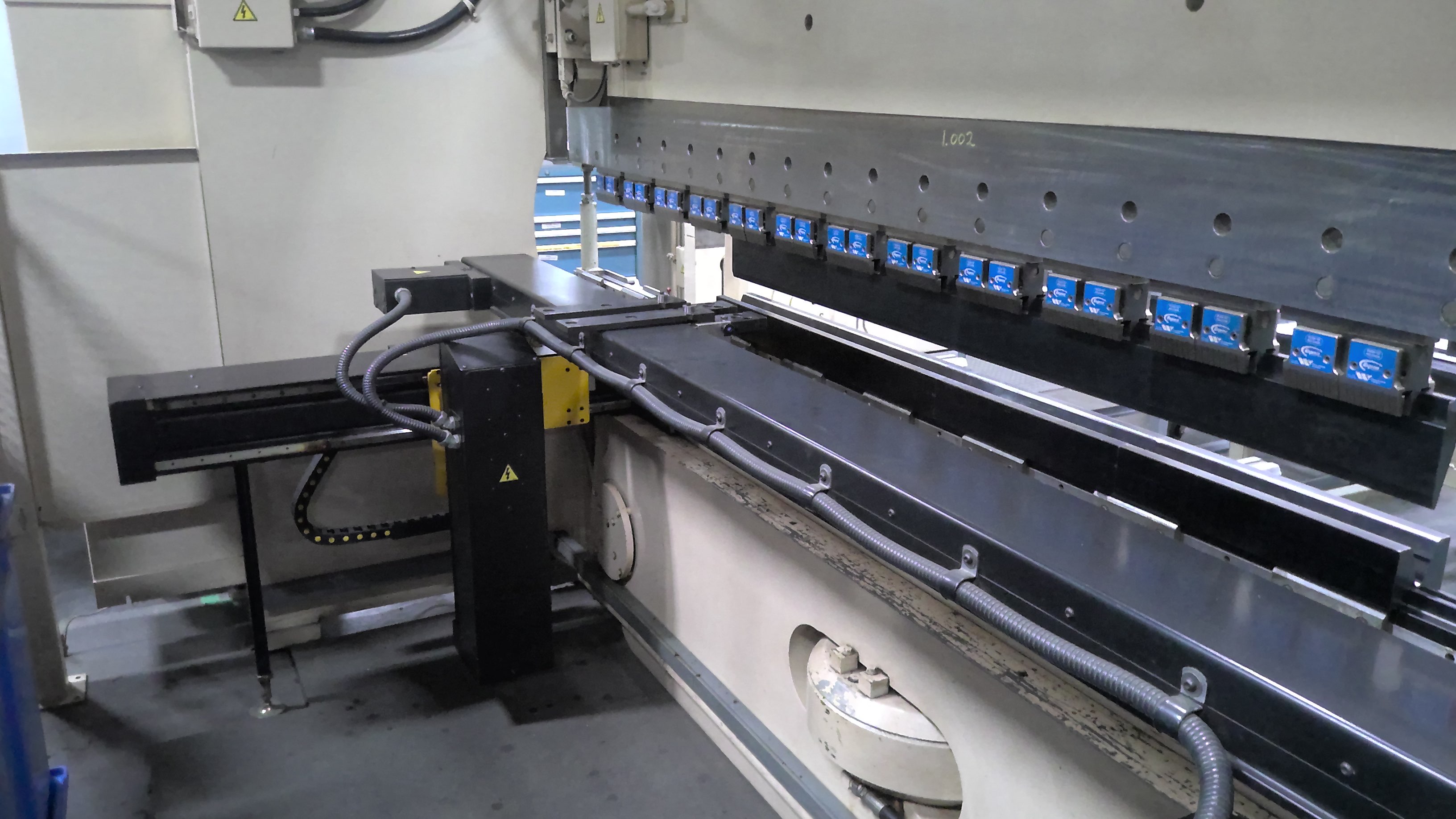

24”  5 Axis Back Gauge ( X1, X2, R, Z1, Z2) Retrofitted by Cincinnati in 2020

Ram Die Clamps on 6” Centers

Two Programmable Footswitches

Precision Ram Leveling With Dual Linear Glass Scale Encoders

Off Load Center Compensation / Variable Displacement Pump

Variable Volume Load  Sensing Pump And Servo Hydraulic System

3-Position Electric Foot Switch

Presence Sensing Interface

Palm Button Station

Manuals

Interlocked Construction

Approximate Overall Weight 35000 Lbs

Approximate Overall Dimensions 177” L  X  72” W  X ’135” H
