Press Brake

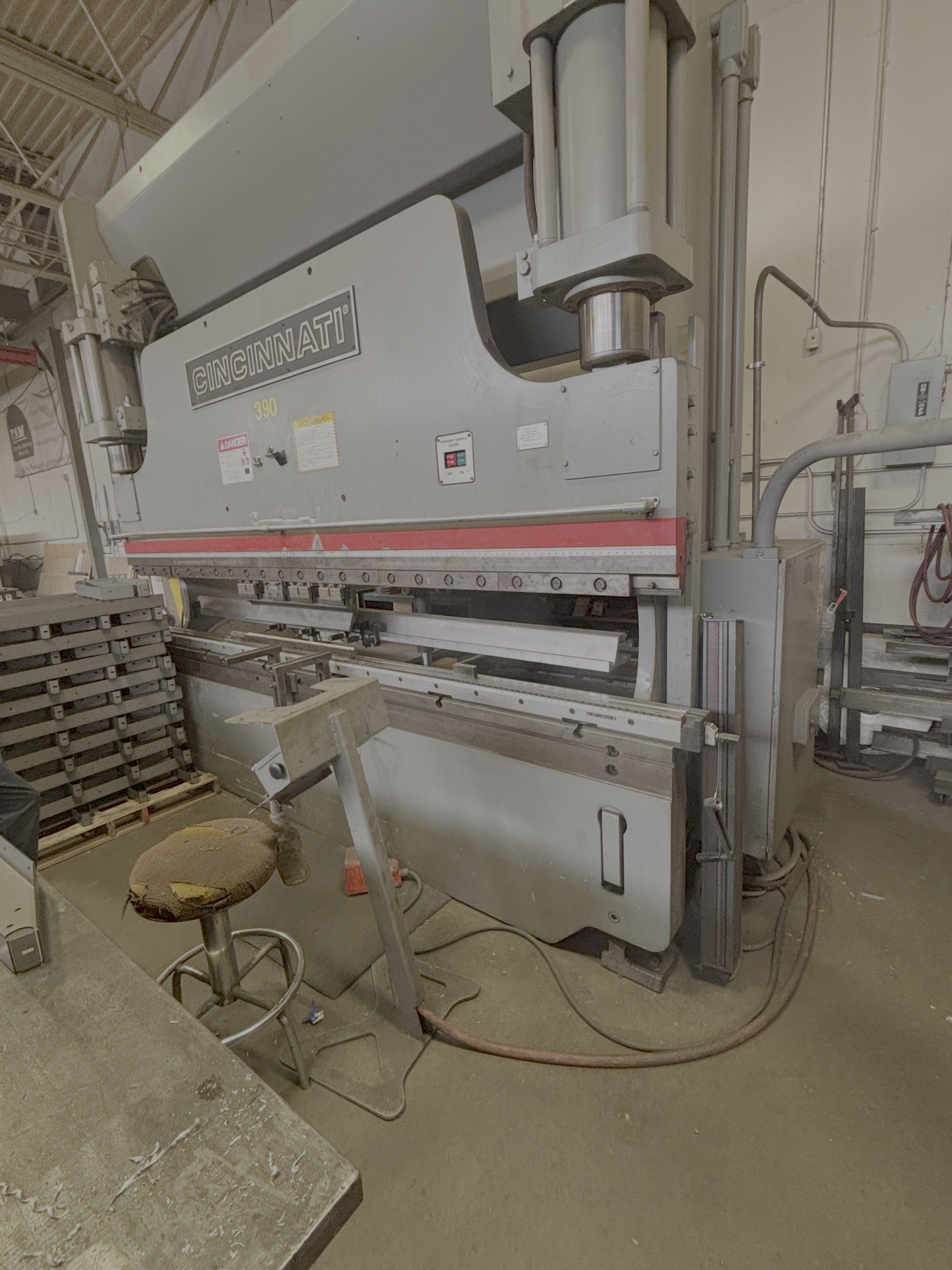

175 Ton X 12’ Cincinnati Model 175 Proform CNC Hydraulic Press Brake
- Pre Owned Cincinnati Model 175 Proform CNC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Capacity 175 TONS
Overall Length of Bed & Ram 10’
Distance Between Housings 18’ 6 1/2”
Stroke 16” (6” Extended)
Open Height 17”
Closed Height 7”
Throat Clearance 8”
Speed
Approach 180 Inch/Minute
Form 1 to 40 Inch/Minute
Return 200 Inch/Minute
Width At Top Of Bed 3 1/2”
Main Motor Horsepower 15 HP 460/3/60
EQUIPPED WITH
Cincinnati CBII CNC Control

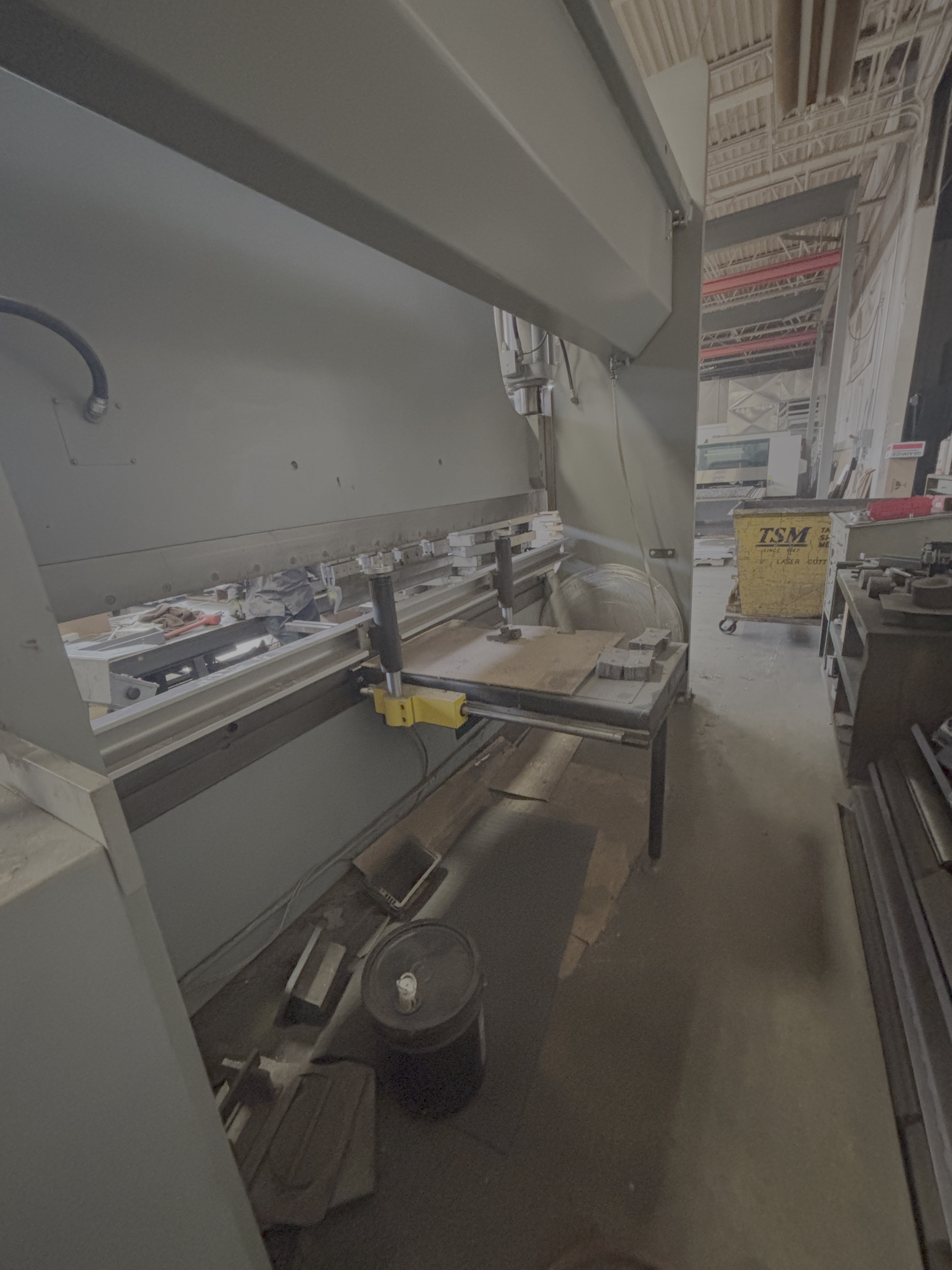

Cincinnati 24” 2-Axis Back Gauge Gauge (X1,X2)
Clamps on 6” Centers
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation
Servo Hydraulic System
Dual Electric Foot Switch
Presence Sensing Interface
Control Mounted Palm Button Station
Manuals
Interlocked Construction
Approximate Overall Weight 26500
Approximate Overall Dimensions 11’1” L X 50”W X ’ 129.5”H
