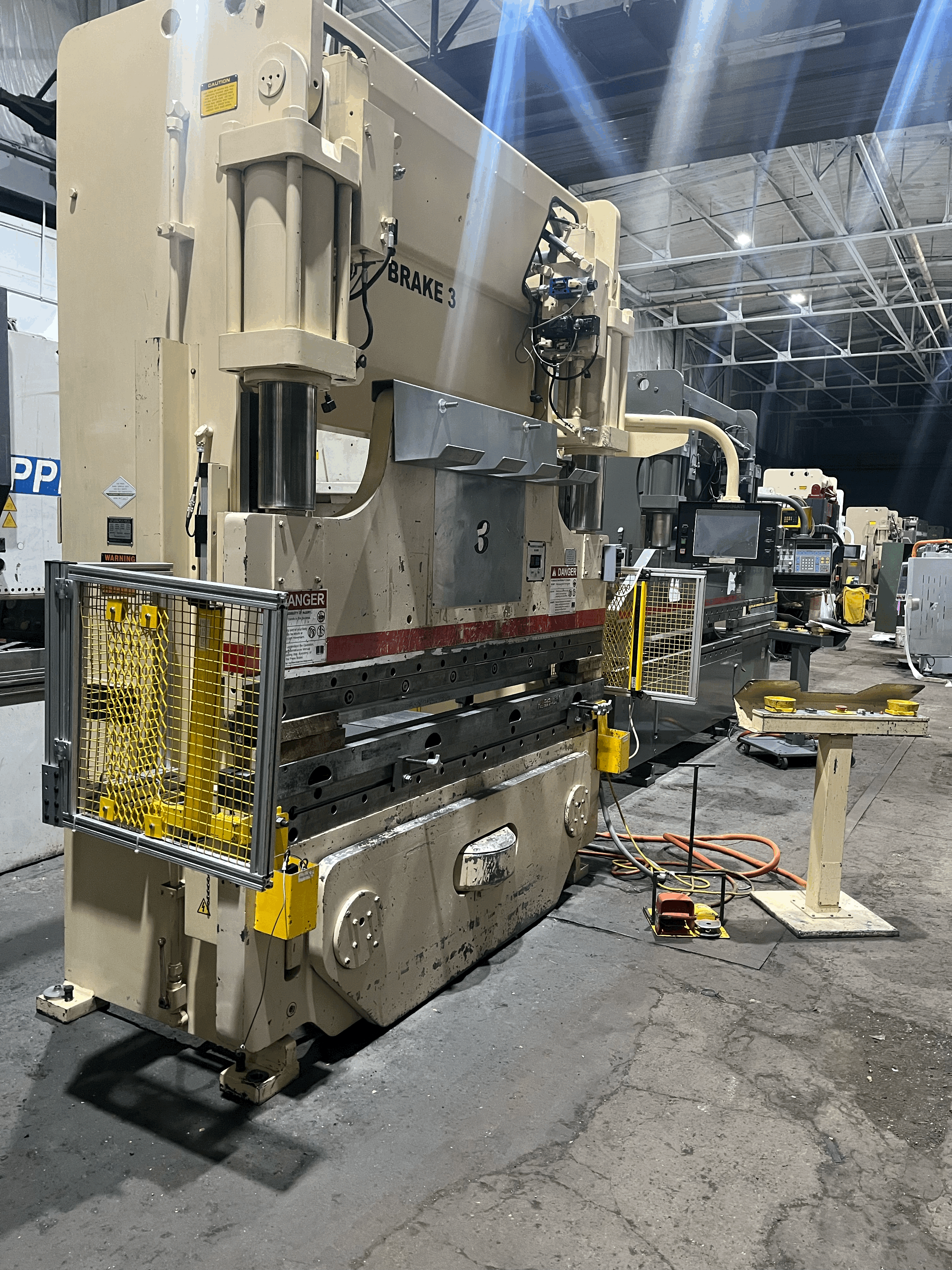

135 Ton X 8’ Cincinnati Autoform CNC Forming Center

135 Ton X 8’ Cincinnati Autoform CNC Forming Center

GENERAL SPECIFICATIONS

Capacity 135 TONS

Overall Length of Bed & Ram 8’

Distance Between Housings ` 6’6 3/4”

Stroke 14” (6” Extended)

Open Height 21”

Closed Height 7”

Throat Clearance 7”

Speeds

Approach 290 INCH PER MINUTE

Form 1 - 80 INCH PER MINUTE

Return 1 - 270 INCH PER MINUTE

Back Gage Speeds X_- AXIS’, 1200 INCH PER MINUTE

Width at Top of Bed 4 ½”

Main Motor Horsepower 25

CONTROL FEATURES

Cincinnati PC Mounted Multi-Axis Control

Programmable Forming Speeds

Programmable Ram Opening

Programmable Reversal

Programmable Tonnage

Control Diagnostics

Tool Library

EQUIPPED WITH

24 “2-Axis CNC Programmable Back gage  with manual R Axis

ISB MerlinLight Barriers

Precision Ram Leveling With Dual Linear Glass Scale Encoders

Autovrown

Off Load Center Compensation

Variable Volume Load  Sensing Pump And Servo Hydraulic System

Programmable Electric Foot Switch

Pedestal Palm Button Station

Manuals

Interlocked Construction

Clevis Mounted Self Aligning Cylinders

Bed & Ram Machined & Drilled for 5 ¾” Angles (Not Provided)

Approximate Overall Weight 20800

Approximate Overall Dimensions 133 L  X ‘ 122”H X 58” W
