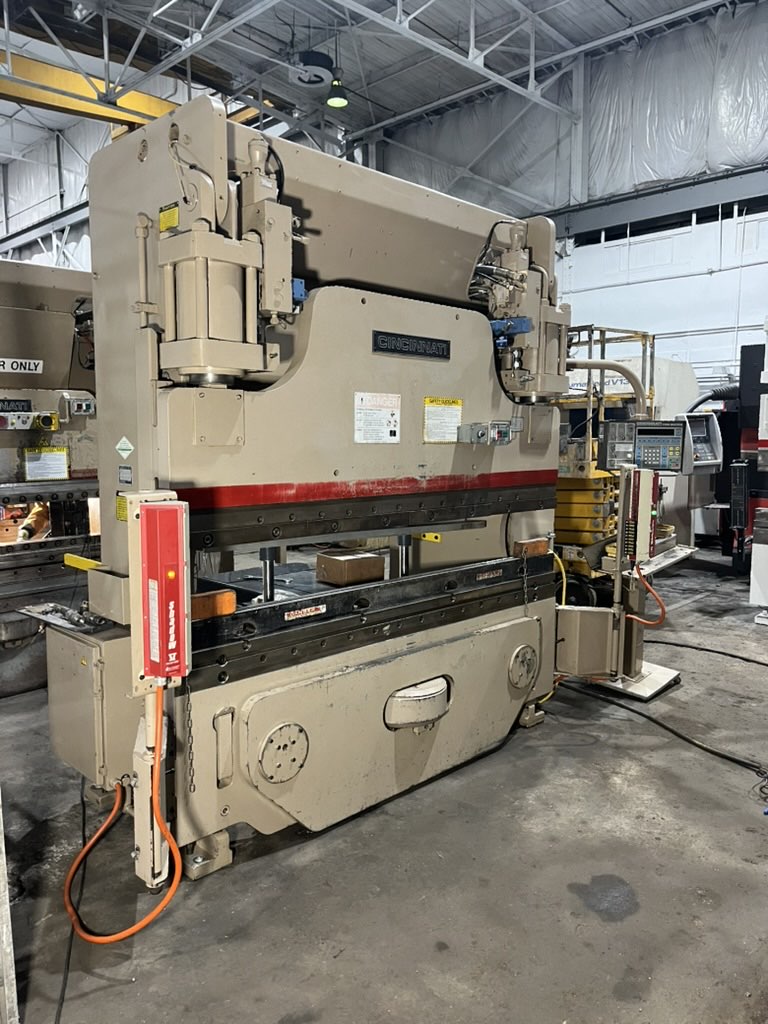

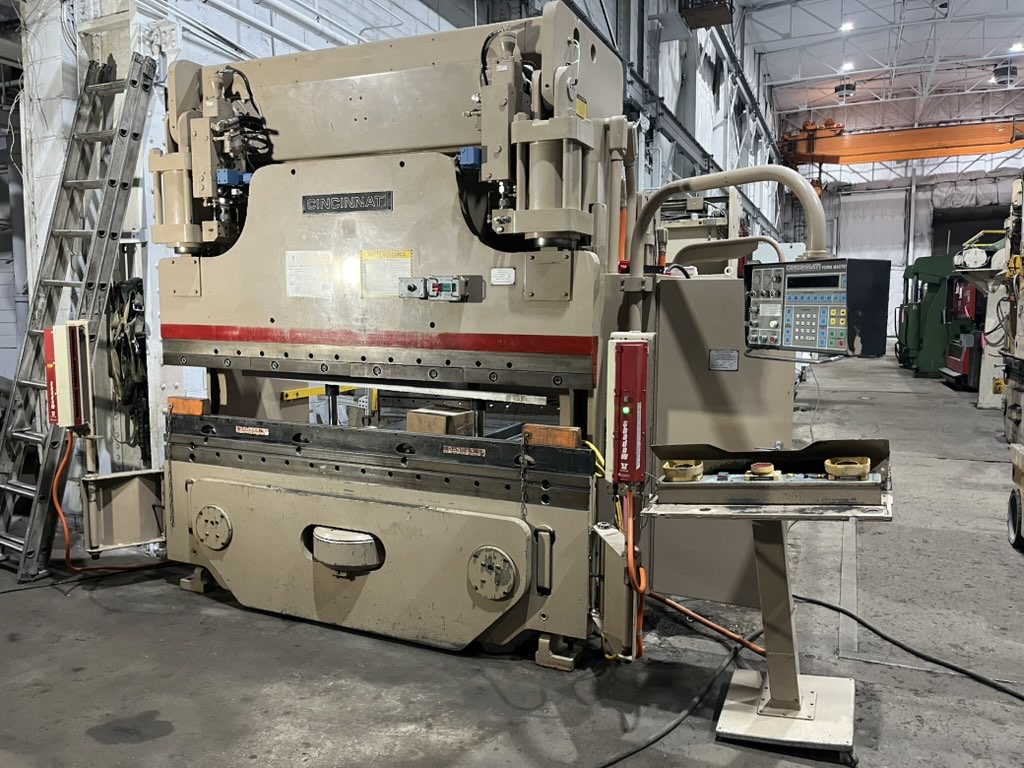

135 Ton X 8’ Cincinnati 135 FMII Hydraulic Press Brake
- Pre Owned 135 Ton Cincinnati 135 FMII Hydraulic Press Brake
GENERAL SPECIFICATIONS
Capacity 135 TONS
Overall Length of Bed & Ram 8’
Distance Between Housings ` 6’6 3/4”
Stroke 8”
Open Height 15”
Closed Height 7”
Throat Clearance 7”
Speeds
Approach 290 INCH PER MINUTE
Form 1 - 80 INCH PER MINUTE
Return 1 - 270 INCH PER MINUTE
Back Gage Speeds X- AXIS’, 1200 INCH PER MINUTE
Width at Top of Bed 4 ½”
Main Motor Horsepower 25
CONTROL FEATURES
FMII Pendant Mounted Multi-Axis Control
Programmable Forming Speeds
Programmable Ram Opening
Programmable Reversal
Programmable Tonnage
Control Diagnostics
Tool Library
EQUIPPED WITH
Autocrown Deflection Compensation

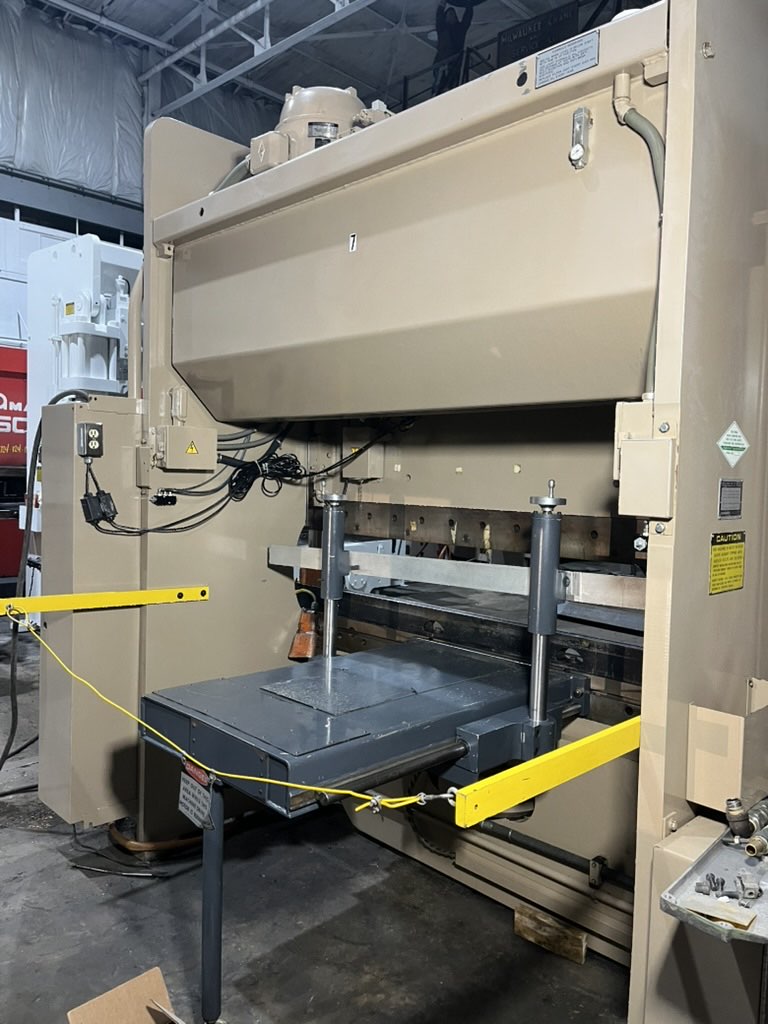

24” Programmable Two Axis Back gage (X & R)
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation
Variable Volume Load Sensing Pump And Servo Hydraulic System
Programmable Electric Foot Switch

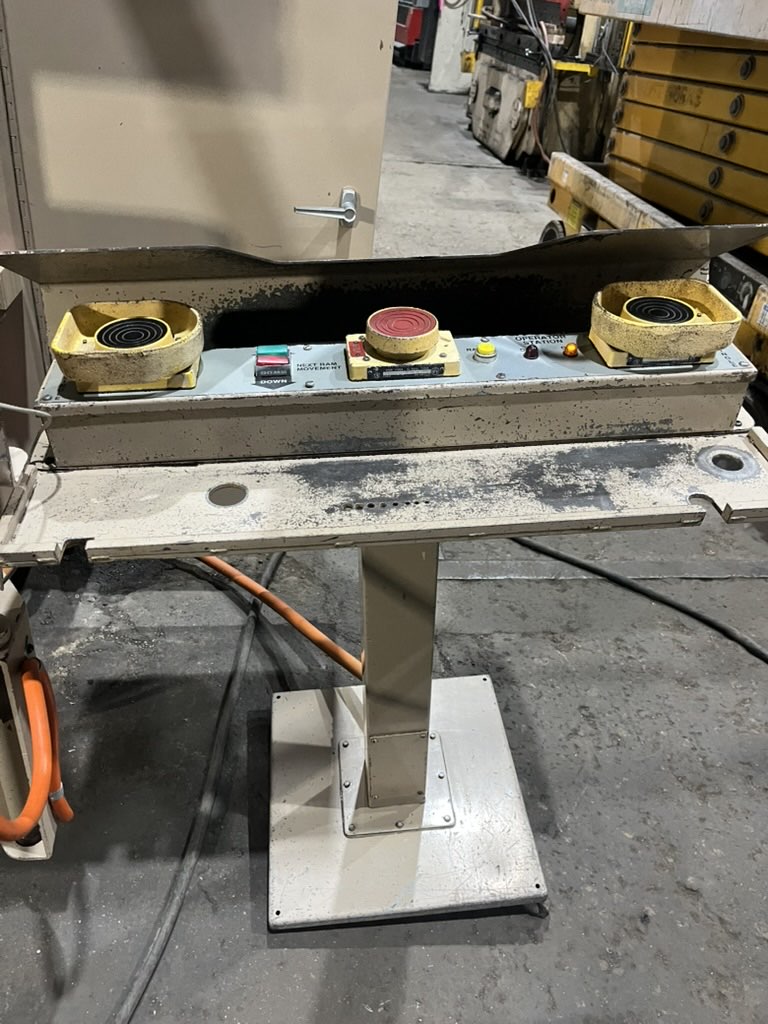

Pedestal Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders
Approximate Overall Weight 16950
Approximate Overall Dimensions 8’9” L X 110’ H X 58” W
