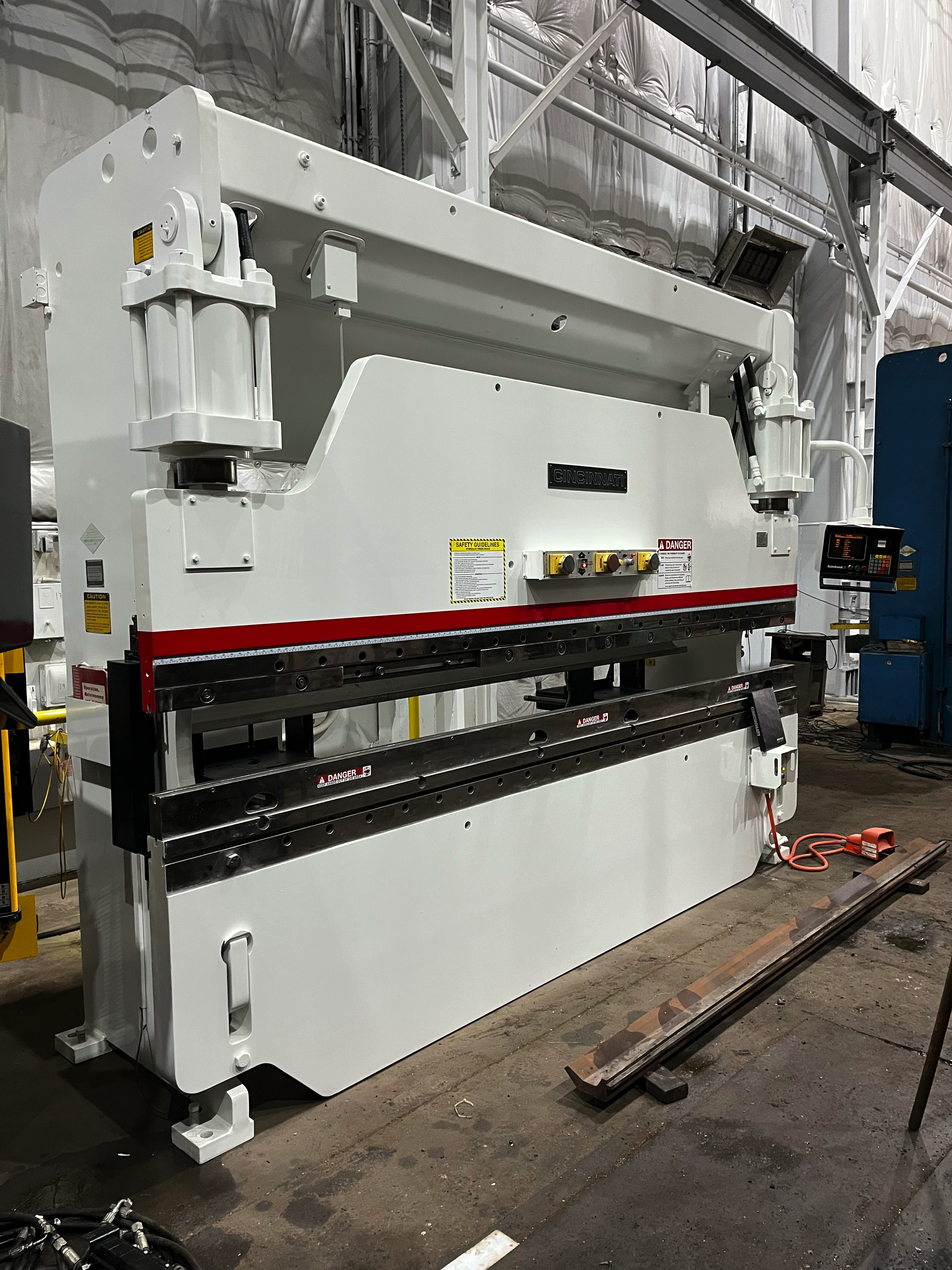

135 Ton X 12’ Cincinnati Model 135CB 3-Axis CNC Press Brake

1. Pre Owned Cincinnati Model 135CB CNC Press Brake

GENERAL SPECIFICATIONS

Capacity 135 TONS

Overall Length of Bed & Ram 12’

Distance Between Housings ` 10’6 3/4”

Stroke 8”

Open Height 15”

Closed Height 7”

Throat Clearance 7”

Speeds

Approach 260 Inch Per Minute

Form 10-20-80 Inch Per Minute

Return 280 Inch Per Minute

Width at Top of Bed 4 ½”

Main Motor Horsepower 25

EQUIPPED WITH

Hurco  AB7 3- Axis Back Gauge (X1,X2, R, Y)

Dual Arm Heavy Duty Back Gauge

Electric Foot Switch

Palm Button Station

Manuals

Interlocked Construction

Clevis Mounted Self Aligning Cylinders

Approximate Overall Weight 20800 Lbs

Approximate Overall Dimensions 12’6.5” L X 50”FB X 110” H
