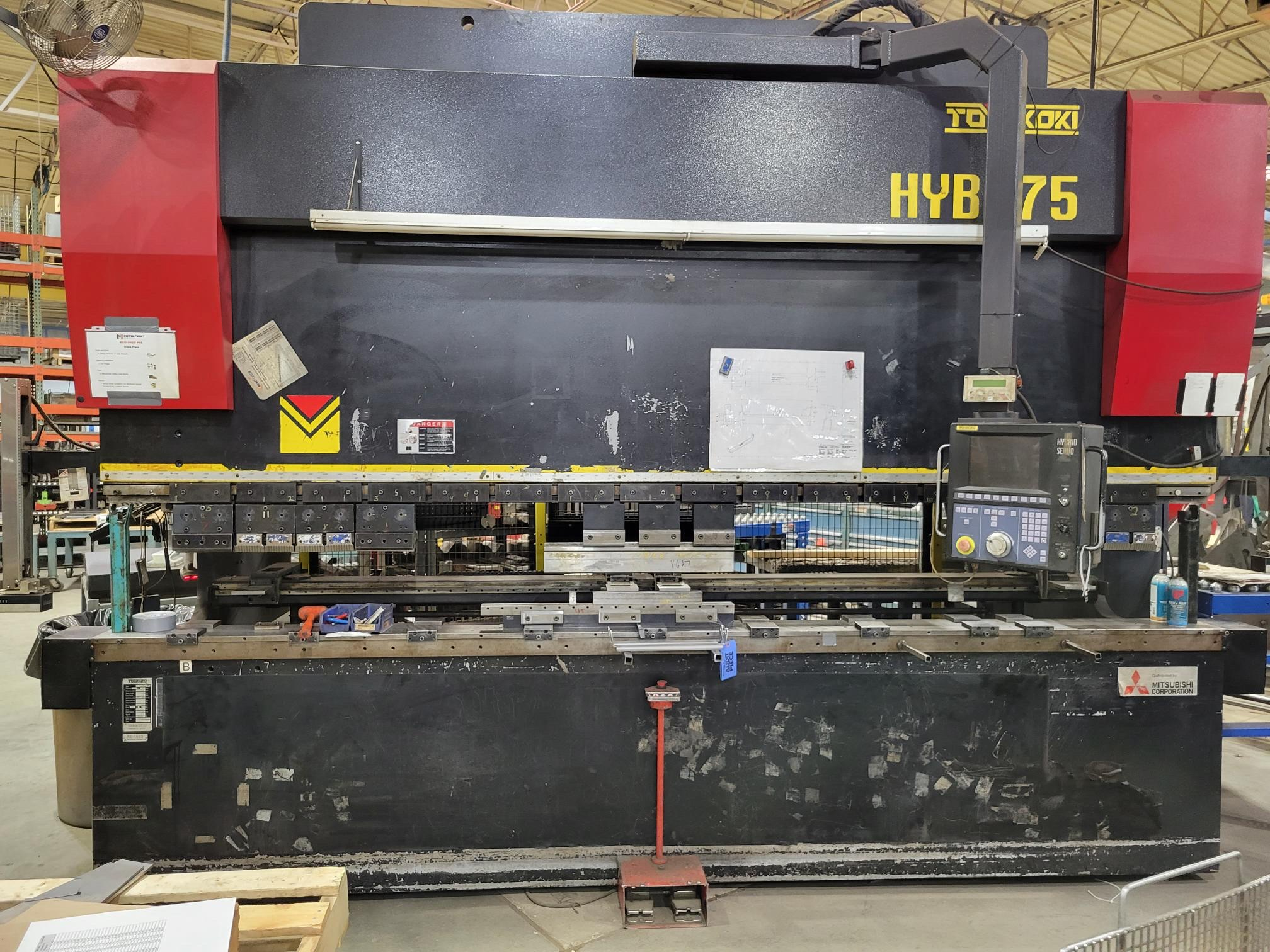

190 Ton X 158” Toyokoki HYB175-40 CNC Hybrid Press Brake

1. Pre Owned Toyokoki HYB-17540  CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS

Capacity 190 Tons

Overall Length of Bed & Ram 157.48”

Distance Between Housings 139.875”

Open Height 13.38”

Stroke 7.87”

Throat 15.748”

Working Height 35.9”

Bed Width 7.5”

Back Gauge Range

Speeds

Rapid Approach 2 - 3.932” Per Sec

Press 0- 0.5” Per Sec

Return 0- 7.7” Per Sec

Main Motor Horsepower 2 KW X 2

EQUIPPED WITH

Multi Axis CNC Control

Y1 Y2 Dual Ram Encoders

Crowning

4-Axis (X, R  Z1, Z2) Back Gauge

Y1 - Y2 Dual Ram Encoders

Sectional Wilson Quick Change Ram Clamps

Pedestal Palm Button Station / Electric Foot Switch

Lazersafe Light Curtains

Lube System

Approximate Overall Dimensions

Approximate Overall Weight 35000
