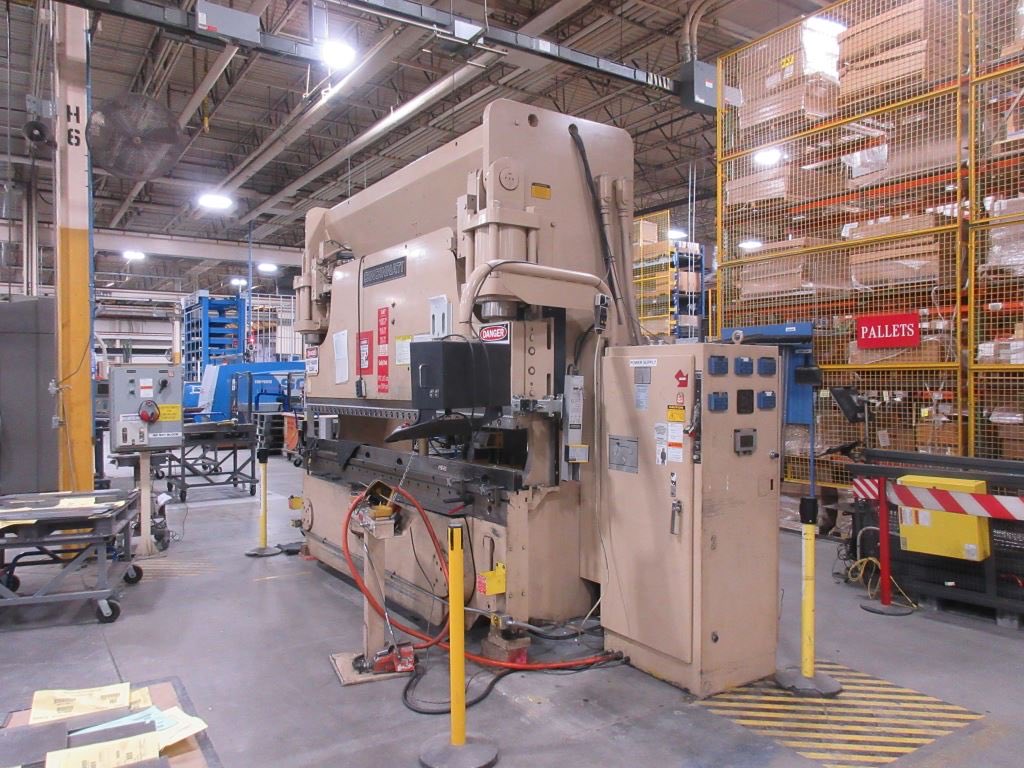

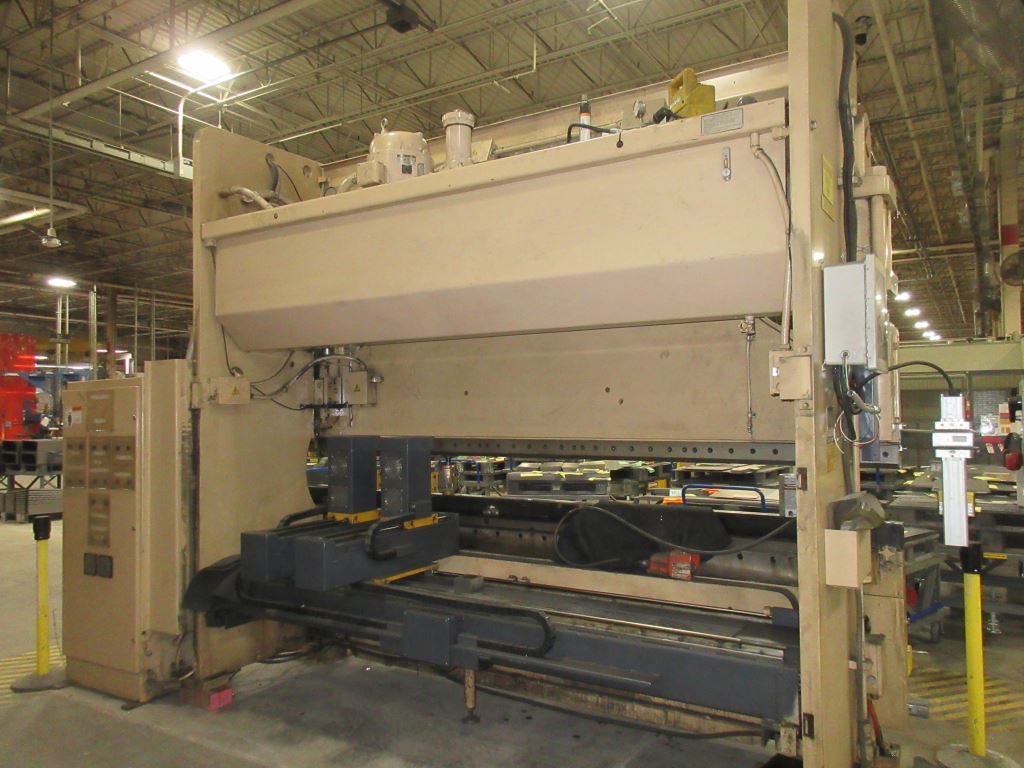

230 Ton X 14' Cincinnati 230 AF12 Autoform CNC Hydraulic Press Brake
- Pre Owned Cincinnati 230 AF12 Autoform CNC Hydraulic Press Brake
GENERAL SPECIFICATIONS
Capacity 230 TONS
Overall Length of Bed & Ram 14’
Distance Between Housings 12’ 6 1/2”
Stroke 10”
Open Height 17”
Closed Height 7”
Throat Clearance 12”
Speed
Approach 230 Inch/Minute
Form 1 to 45 Inch/Minute
Return 1 to 250 Inch/Minute
Width At Top Of Bed 5 1/2”
Main Motor Horsepower 25 HP 460/3/60
EQUIPPED WITH
Cincinnati Human Machine Interface
Industrial PC Based Control
15.1” TFT Touchscreen Display
Tool Library
CAD Design Software
Dynamic Thickness Compensation
Adaptive Control Mode
EQUIPPED WITH
6-Axis 24” Back Gauge (X1, X2, Z1, Z2, R1, R2)
AutoCrown Deflection Compensation
Fiedler Light Curtains
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation
Variable Volume Load Sensing Pump And Servo Hydraulic System
3-Position Electric Foot Switch
Presence Sensing Interface
Palm Button Station
Manuals
Interlocked Construction
