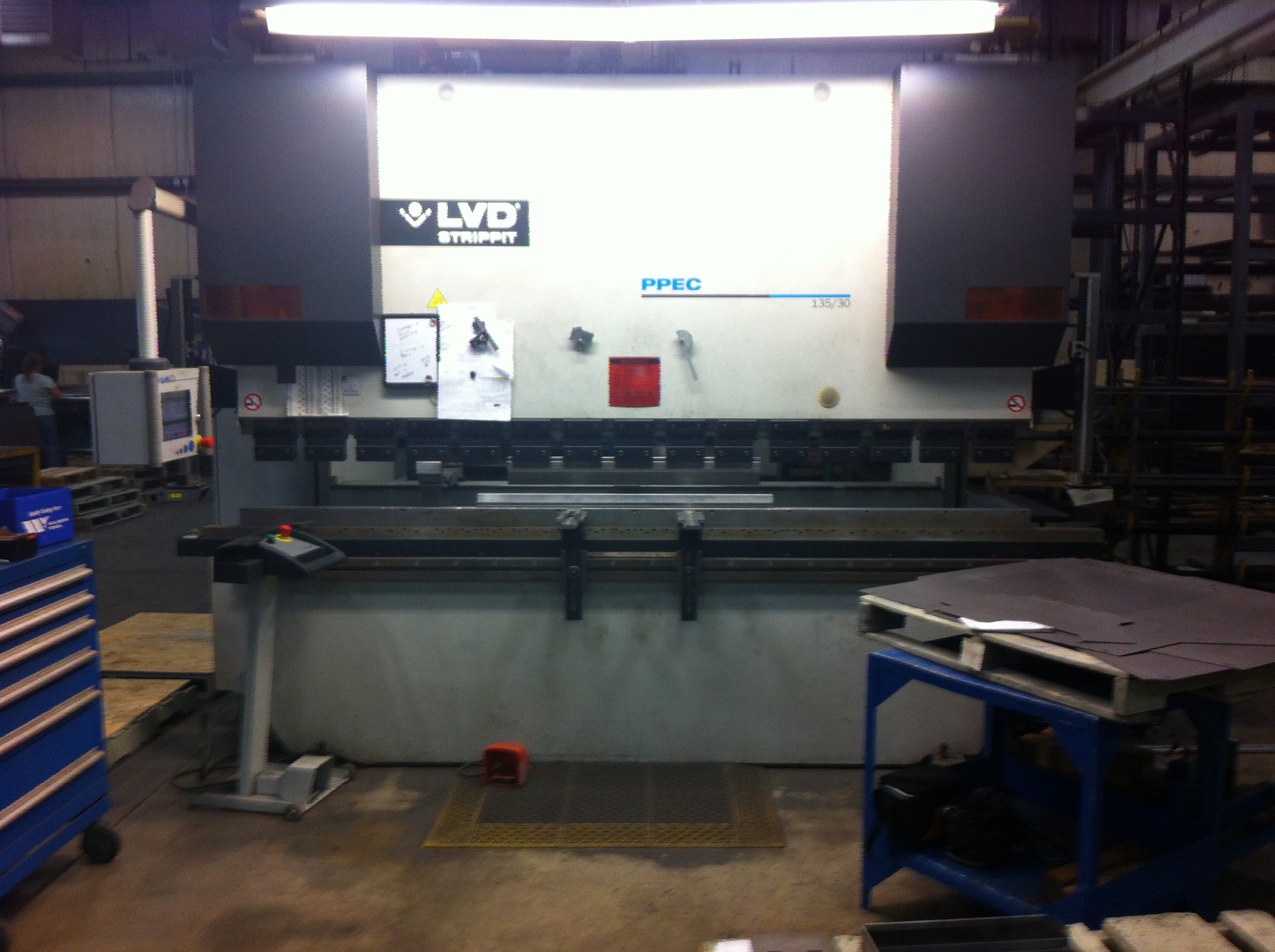

150 Ton LVD PPEC-5 CNC Hydraulic Press Brake

(1)Pre Owned 2010  LVD PPEC-5 CNC Hydraulic Press Brake

GENERAL SPECIFICATIONS
Tonnage Capacity:                        150  US Tons
Overall Length of Bed & Ram:        10’
Distance Between Housings:            102”
Stroke:                                        7.9"
Open Height:                                19.6"
Closed Height:                                11.9"
Width of Bed:                                4.7
Throat Depth:                                15.7"
Back Gauge X Range            24”
Speeds
    Approach            307 Inch/Min
    Form                26 Inch/Min
    Return                236 Inch/Min
Oil Capacity                73 US Gallons
Main Motor Horsepower            15 480/3/60

EQUIPPED WITH

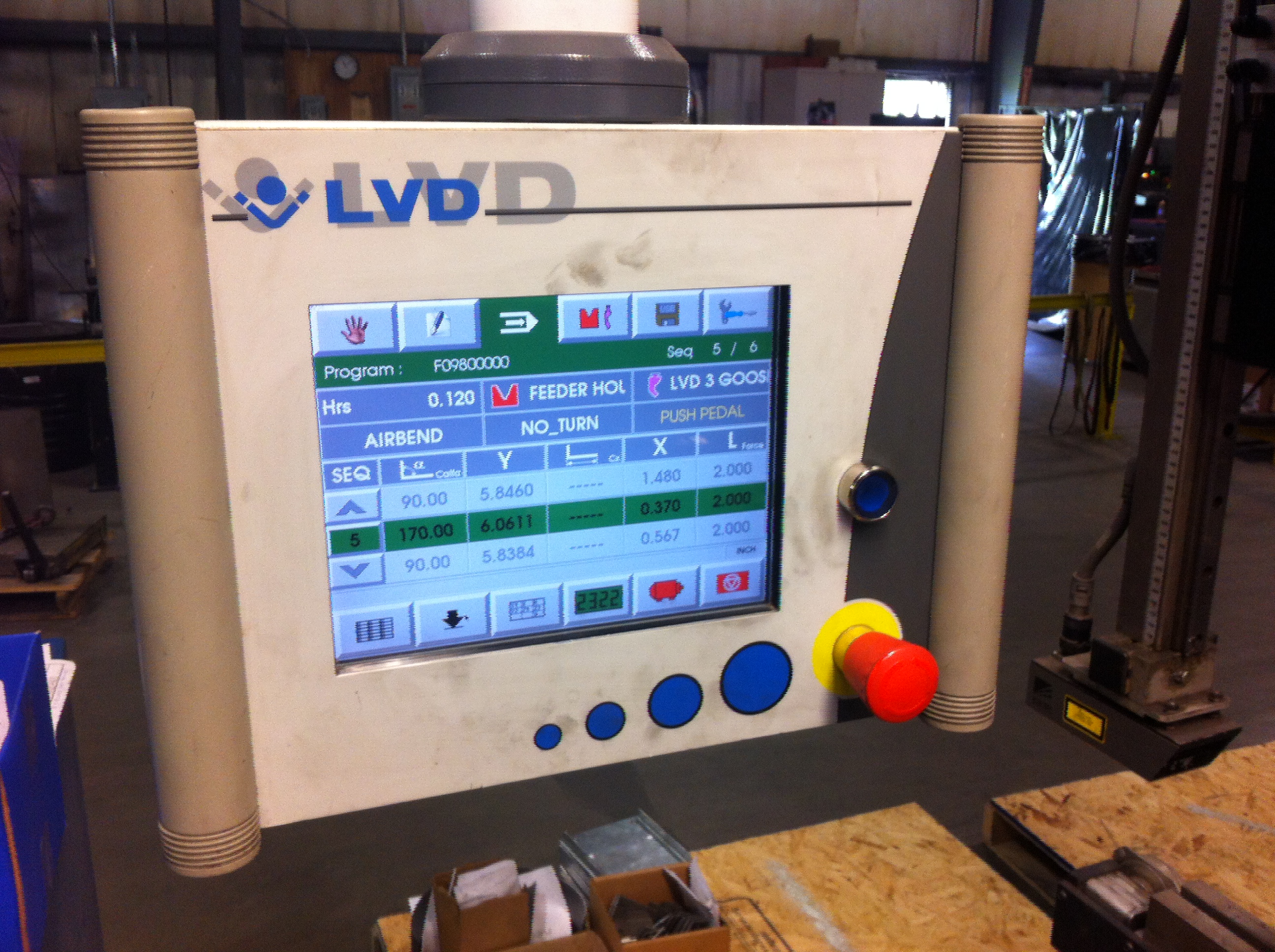

LVD Cadman Lite CNC Control
Sectional Ram Clamps
Y1, Y2 Dual Ram Encoders
2 Axis Back Gauge  (X & R))
high speed servo hydraulic system
pedestal palm station / Electric Foot Switch
Heidenhain Scales
Overall Dimensions Approx.  L-R x’ F-B x ” H
