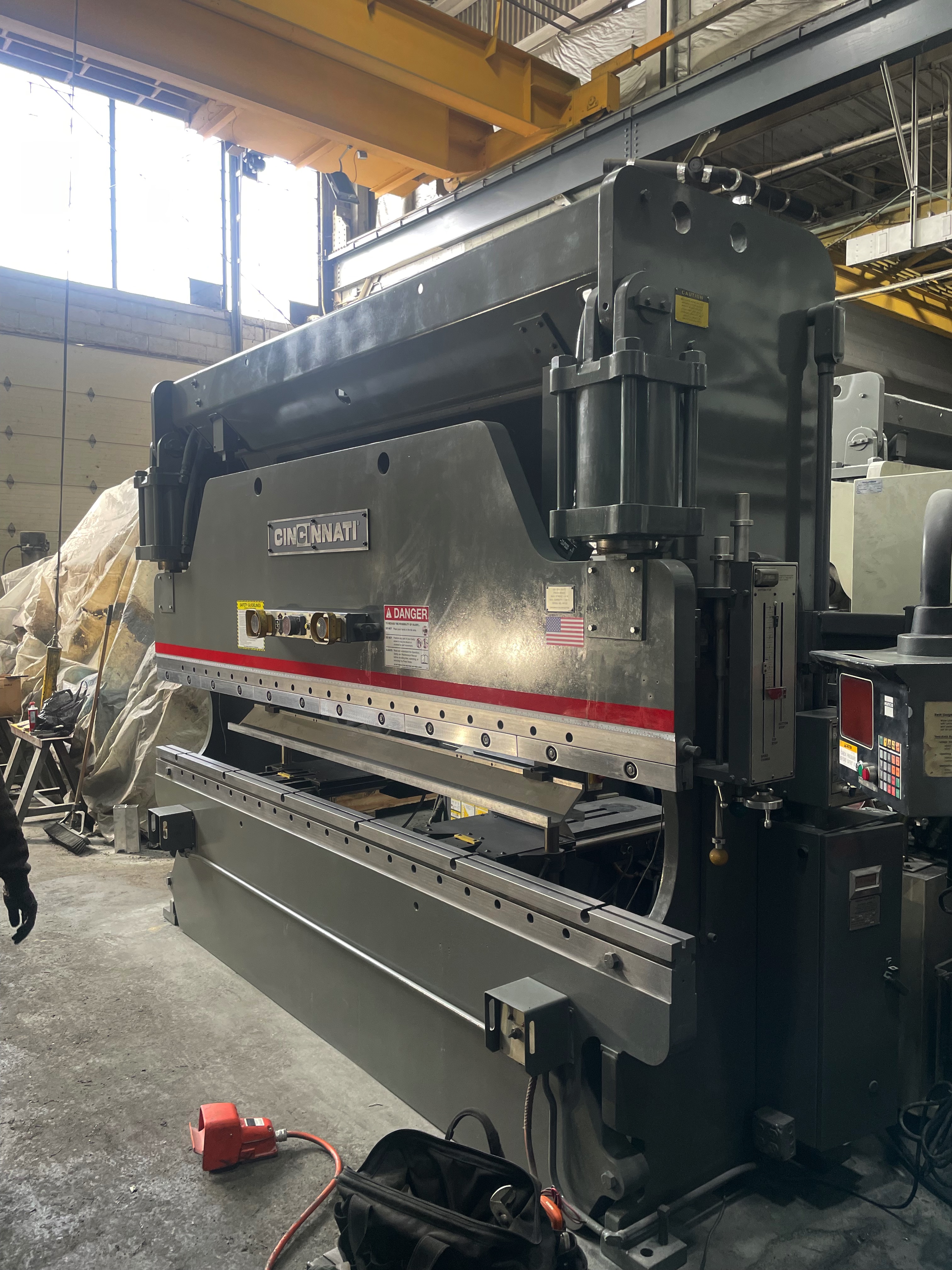

135 Ton X 12' Cincinnati Model 135CB CNC Press Brake

Pre Owned Cincinnati Model 135CB CNC Press Brake

GENERAL SPECIFICATIONS
Capacity                         135 TONS
Overall Length of Bed & Ram                12’
Distance Between Housings    `            10’6 3/4”
Stroke                            8”
Open Height                        15”
Closed Height                        7”
Throat Clearance                    7”
Speeds
Approach                    260 Inch Per Minute
Form                        10-20-80 Inch Per Minute
Return                        280 Inch Per Minute
Width at Top of Bed                    4 ½”
Main Motor Horsepower                25

EQUIPPED WITH
Hurco  AB7 Single Axis Back Gauge

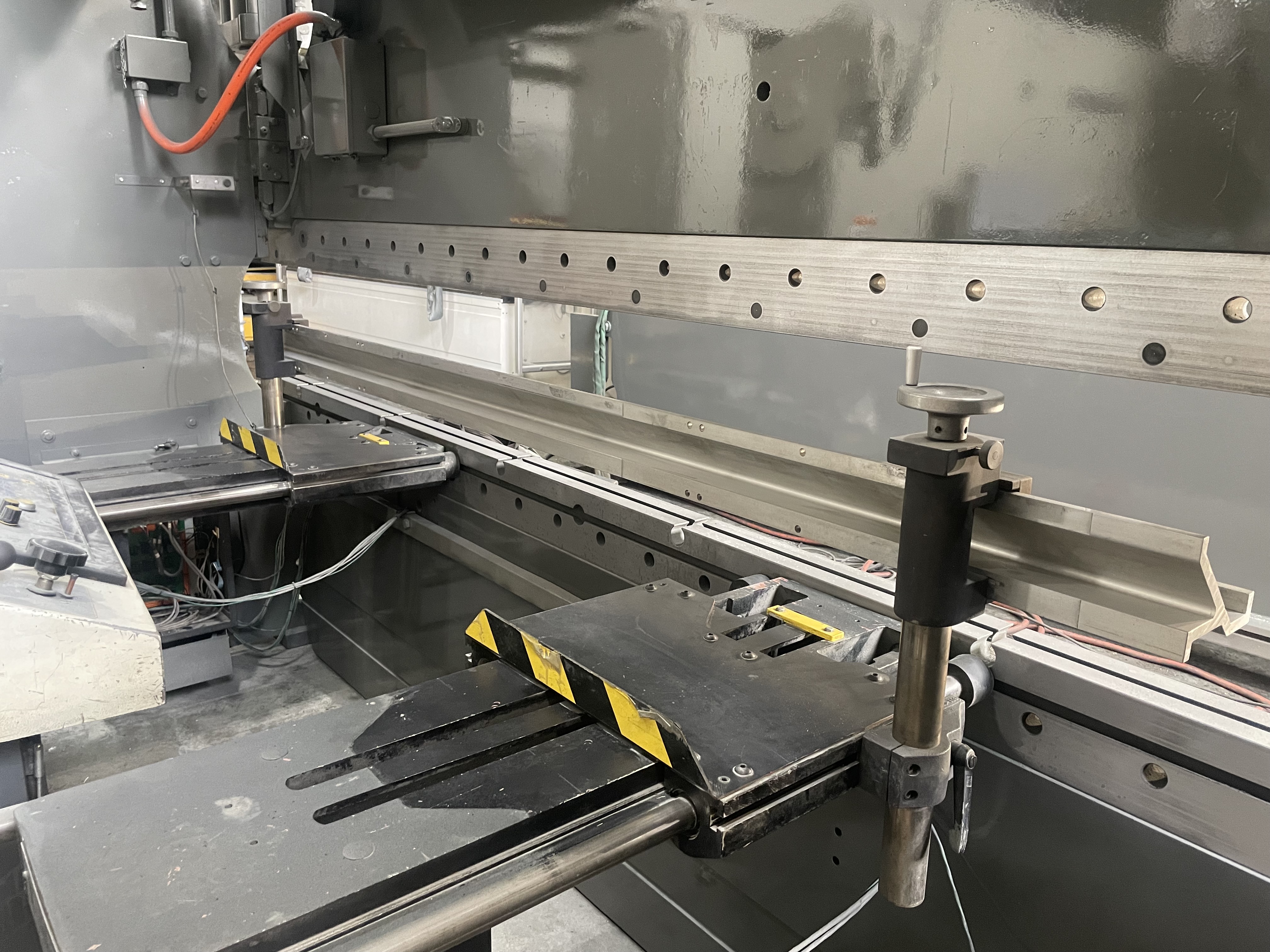

Dual Arm Heavy Duty Back Gauge
Electric Foot Switch
Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders

Approximate Overall Weight                 20800 Lbs
Approximate Overall Dimensions             12’6.5” L X 50”FB X 110” H
